DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Zurn475STDAV — Stainless Steel n475STDAV

Zurn Reduced Pressure Detector Assembly (Backflow Prevention). Model 475STDA. Main valve body and access covers are 304L Stainless steel; Maximum working water pressure is 175 psi; Hydrostatic test pressure is 350 psi; Approved for drop-in replacement of competitor valves. material: 304L Stainless steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF475STDAV.pdfData sheet

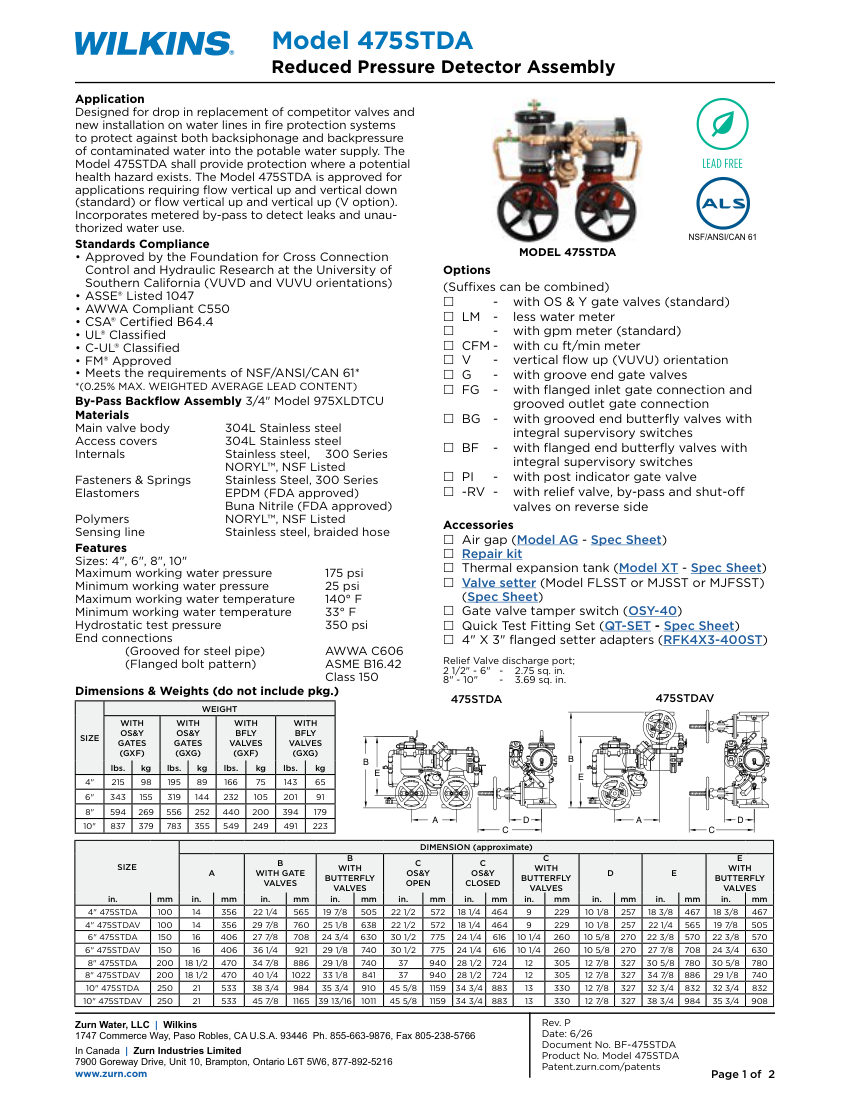

Zurn 475STDAV cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
475STDAV
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number475STDAV
DescriptionZurn Reduced Pressure Detector Assembly (Backflow Prevention). Model 475STDA. Main valve body and access covers are 304L Stainless steel; Maximum working water pressure is 175 psi; Hydrostatic test pressure is 350 psi; Approved for drop-in replacement of competitor valves. material: 304L Stainless steel
Connection size4", 6", 8", 10"
End connectionGrooved (AWWA C606) or Flanged (ASME B16.42 Class 150)
Pressure Rating175 psi max working, 350 psi hydrostatic
MountingVertical up/down or vertical up/up
ComplianceNSF/ANSI/CAN 61, ASSE 1047, AWWA C550, CSA B64.4, UL, FM.

Also cataloged as: 475STDA
