Zurn500XL — Pressure Reducing Valve500XL

Zurn Water Pressure Reducing Valve (Pressure Reducing Valve). Model 500XL. Maximum working water temperature 140°F; Reduced pressure range 25 psi to 75 psi; Factory preset 50 psi (field set for 2 1/2" & 3"); Integral by-pass check valve design. material: Low Lead Cast bronze ASTM B 584, Low Lead Brass, Stainless steel 300 series

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF500XL.pdfData sheet

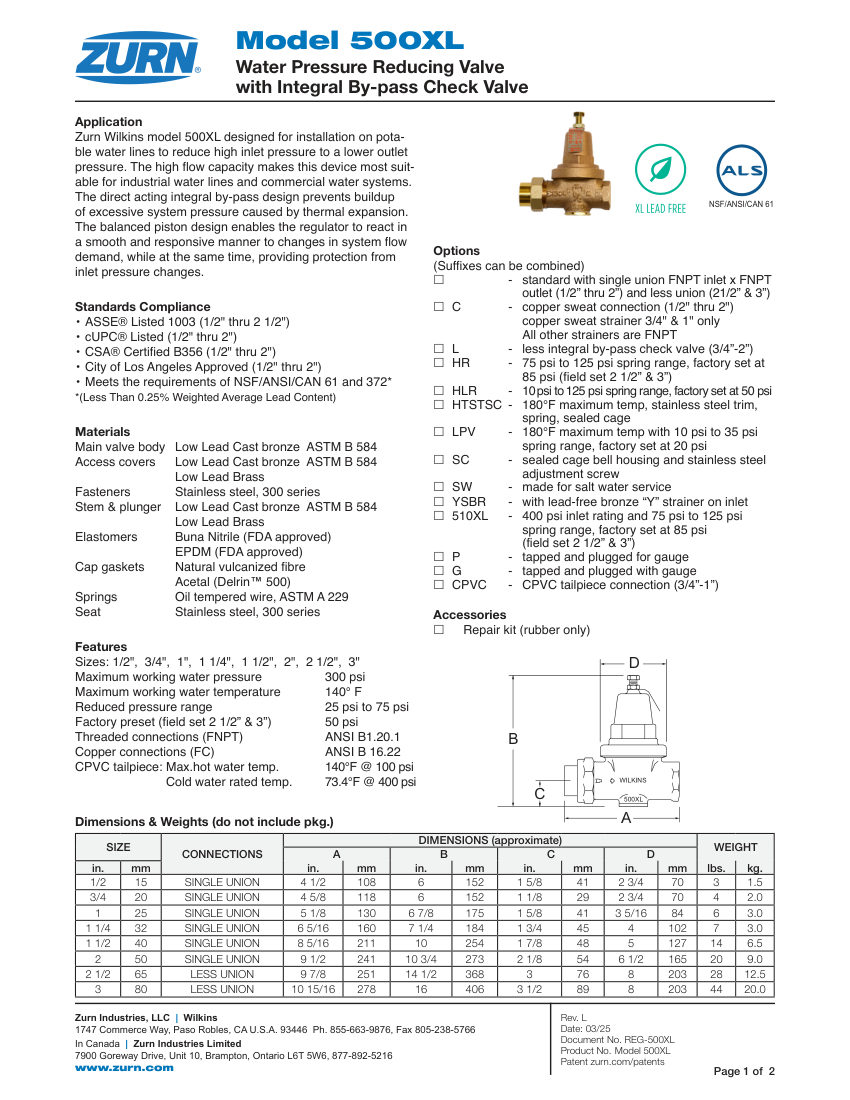

Zurn 500XL cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
500XL
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number500XL
DescriptionZurn Water Pressure Reducing Valve (Pressure Reducing Valve). Model 500XL. Maximum working water temperature 140°F; Reduced pressure range 25 psi to 75 psi; Factory preset 50 psi (field set for 2 1/2" & 3"); Integral by-pass check valve design. material: Low Lead Cast bronze ASTM B 584, Low Lead Brass, Stainless steel 300 series
Connection size1/2" to 3"
End connectionFNPT, Copper sweat, CPVC tailpiece
Pressure Rating300 psi max working pressure
DimensionsVaries by size (e.g., 1/2" A=4 1/2", B=6")
ComplianceASSE 1003, cUPC, CSA B356, NSF/ANSI/CAN 61 & 372.
