DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Zurn600XL — Residential, Commercial, Pressure Reducing Valve600XL

Zurn Water Pressure Reducing Valve (Pressure Reducing Valve). Model 600XL. Integral by-pass check valve and strainer; Factory preset at 50 psi; Maximum working water temperature 140°F; Balanced piston design. material: Low Lead Cast Bronze ASTM B 584, Low Lead Brass, Stainless Steel 300 Series

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF600XL.pdfData sheet

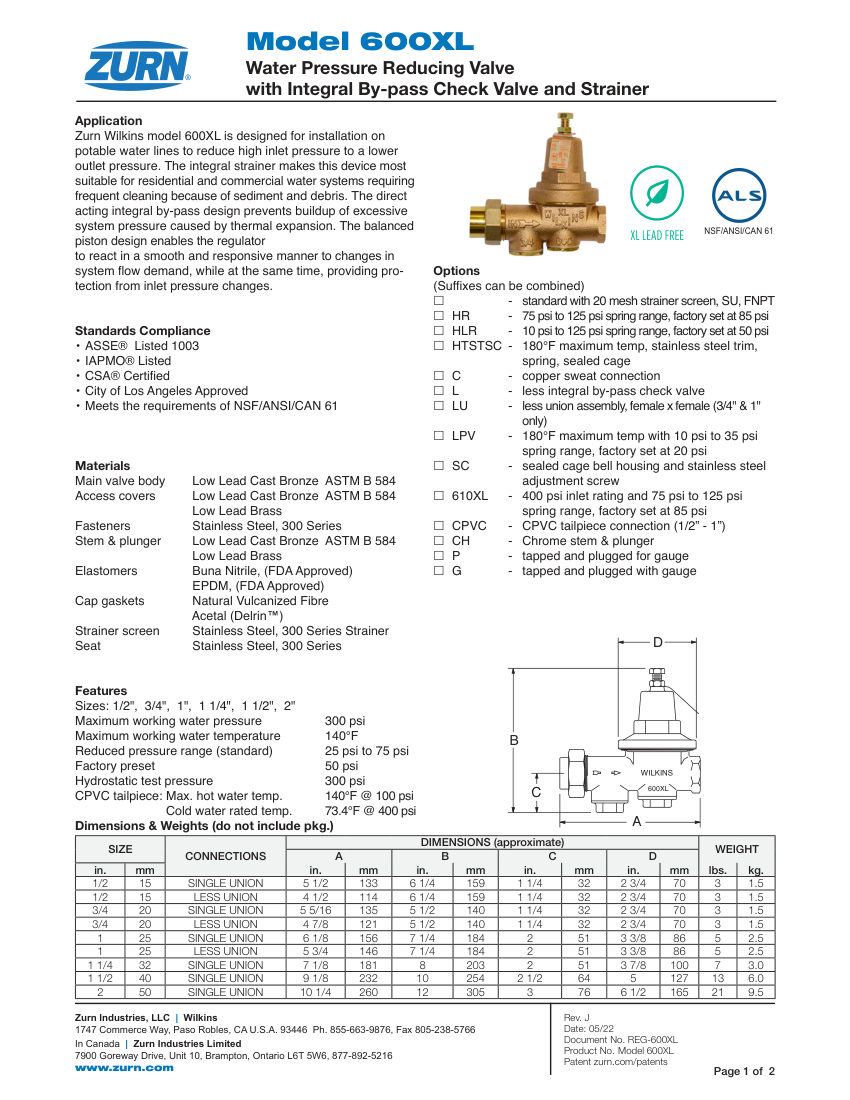

Zurn 600XL cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
600XL
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number600XL
DescriptionZurn Water Pressure Reducing Valve (Pressure Reducing Valve). Model 600XL. Integral by-pass check valve and strainer; Factory preset at 50 psi; Maximum working water temperature 140°F; Balanced piston design. material: Low Lead Cast Bronze ASTM B 584, Low Lead Brass, Stainless Steel 300 Series
Connection size1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
End connectionSingle Union, Less Union, CPVC Tailpiece
Pressure Rating300 psi max working pressure, 25-75 psi reduced pressure range
MountingIn-line
DimensionsVaries by size (e.g., 1/2" Single Union: 5 1/2" x 6 1/4" x 1 1/4").

Also cataloged as: RK1-600XL, RK34-600XL
