DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Zurn860XL

Zurn Resilient Seated Ball Type Test Cock (Test Cocks). Model 860XL & 860XLFT. Maximum pressure rating of 300 PSI WOG; Maximum operating temperature of 180°F; Available in 1/8" and 1/4" sizes; Includes threaded dust cover on 860XLFT model. material: Low Lead Cast Bronze ASTM B 584 (Body), Low Lead Brass Chrome Plated (Ball), Teflon (Seat & Packing), Brass ASTM B 16 (Flare Fitting)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF860XL.pdfData sheet

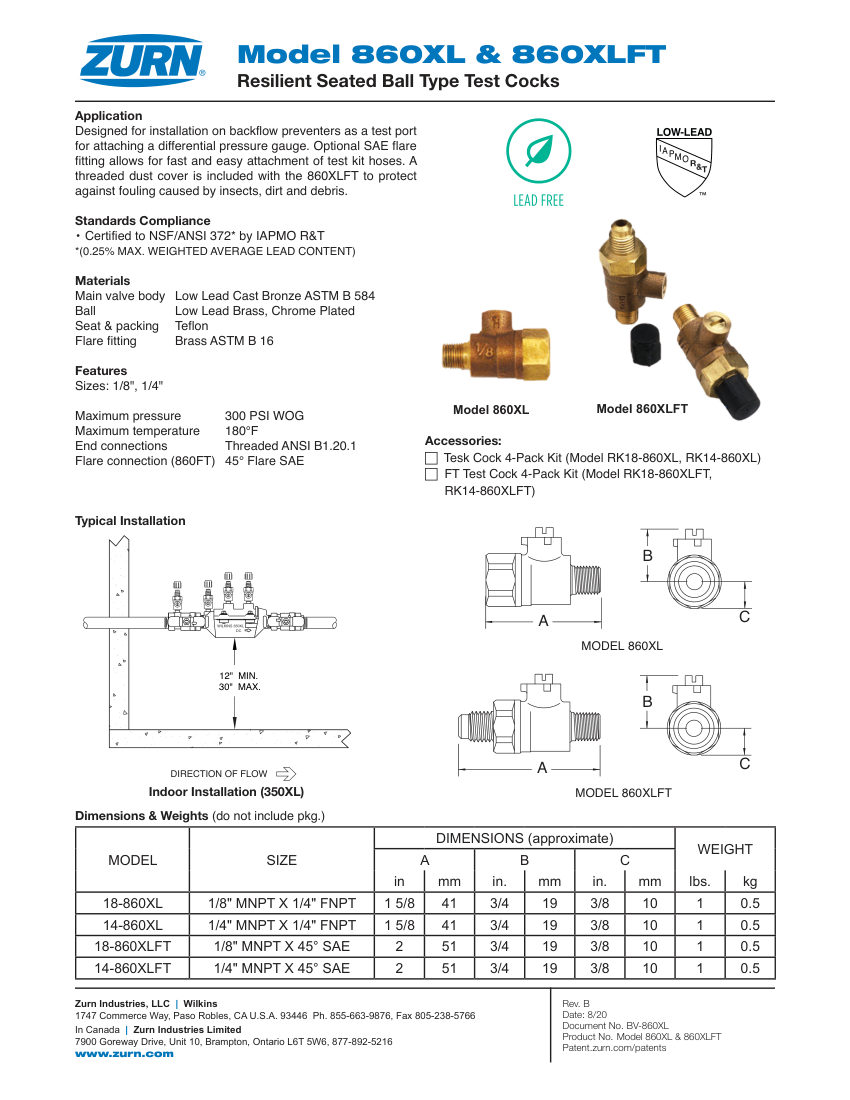

Zurn 860XL cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
860XL
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number860XL
DescriptionZurn Resilient Seated Ball Type Test Cock (Test Cocks). Model 860XL & 860XLFT. Maximum pressure rating of 300 PSI WOG; Maximum operating temperature of 180°F; Available in 1/8" and 1/4" sizes; Includes threaded dust cover on 860XLFT model. material: Low Lead Cast Bronze ASTM B 584 (Body), Low Lead Brass Chrome Plated (Ball), Teflon (Seat & Packing), Brass ASTM B 16 (Flare Fitting)
Connection size1/8" MNPT, 1/4" MNPT
End connectionThreaded ANSI B1.20.1 (860XL), 45° Flare SAE (860XLFT)
Pressure Rating300 PSI WOG
FinishChrome Plated (Ball)
MountingBackflow preventer test port.

Also cataloged as: 860XLFT
