DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Zurn950

Zurn Double Check Valve Assembly (Backflow Prevention). Model 950. Protects against backsiphonage and backpressure; Maximum working water temperature 140°F; Standard configuration includes NRS gate valves; Internals include 300 Series Stainless Steel and EPDM/Buna Nitrile elastomers. material: Cast Iron ASTM A126 Class B, Stainless Steel 300 Series, Cast Bronze ASTM B 584

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF950.pdfData sheet

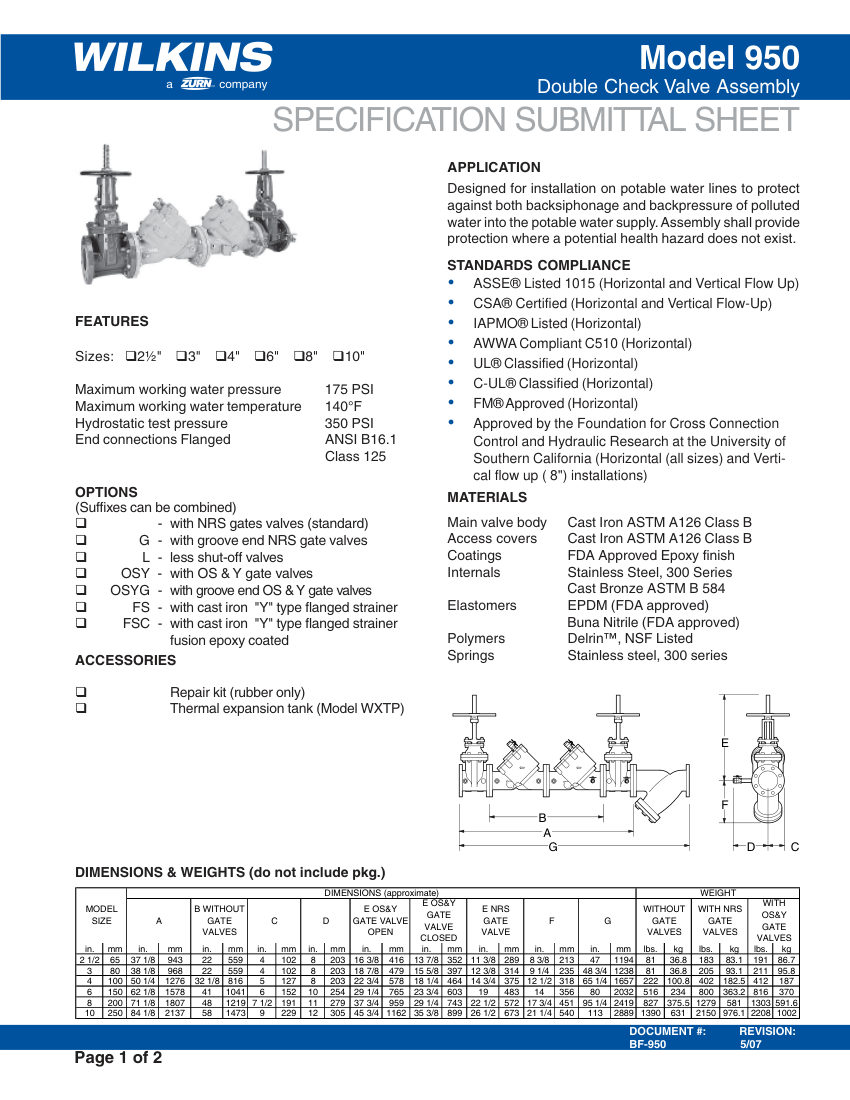

Zurn 950 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
950
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number950
DescriptionZurn Double Check Valve Assembly (Backflow Prevention). Model 950. Protects against backsiphonage and backpressure; Maximum working water temperature 140°F; Standard configuration includes NRS gate valves; Internals include 300 Series Stainless Steel and EPDM/Buna Nitrile elastomers. material: Cast Iron ASTM A126 Class B, Stainless Steel 300 Series, Cast Bronze ASTM B 584
Connection size2½" to 10"
End connectionFlanged ANSI B16.1 Class 125
Pressure Rating175 PSI max working, 350 PSI hydrostatic
FinishFDA Approved Epoxy
MountingHorizontal and Vertical Flow Up.
