Zurn950DA

Zurn Double Check Detector Assembly (Backflow Prevention). Model 950DA. Protects against backsiphonage and backpressure; Maximum working water temperature 140°F; Internals include 300 Series Stainless Steel and Cast Bronze; Elastomers are FDA approved EPDM and Buna Nitrile. material: Cast Iron ASTM A126 Class B, Stainless Steel 300 Series, Cast Bronze ASTM B 584

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF950DA.pdfData sheet

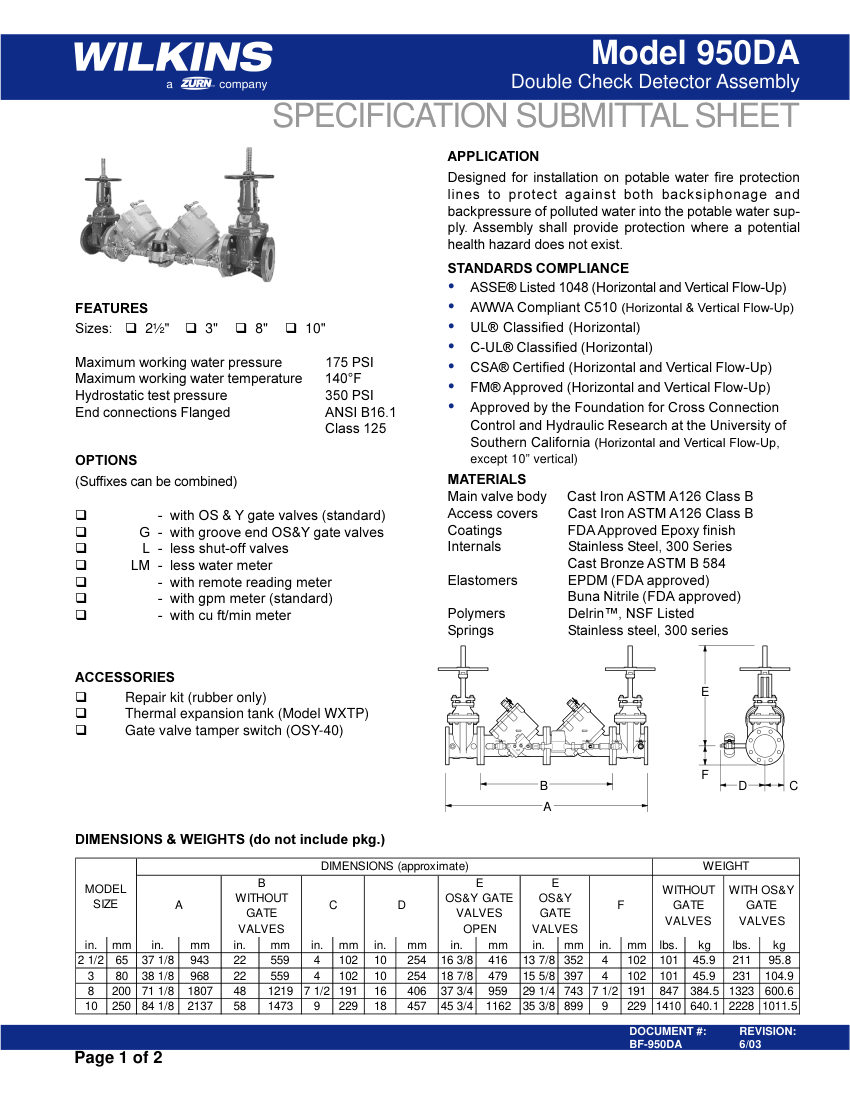

Zurn 950DA cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
950DA
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number950DA
DescriptionZurn Double Check Detector Assembly (Backflow Prevention). Model 950DA. Protects against backsiphonage and backpressure; Maximum working water temperature 140°F; Internals include 300 Series Stainless Steel and Cast Bronze; Elastomers are FDA approved EPDM and Buna Nitrile. material: Cast Iron ASTM A126 Class B, Stainless Steel 300 Series, Cast Bronze ASTM B 584
Connection size2½", 3", 8", 10"
End connectionFlanged ANSI B16.1 Class 125
Pressure Rating175 PSI max working, 350 PSI hydrostatic
FinishFDA Approved Epoxy
MountingHorizontal and Vertical Flow-Up.
