DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Zurn950XLOSY950XLOSY

Zurn Double Check Valve Assembly (Backflow Prevention). Model 950XLOSY. Designed for fire protection water lines; Protects against backsiphonage and backpressure; Maximum working water temperature 180°F; Includes OS&Y Gate Valves. material: Cast Bronze ASTM B 584, Stainless Steel 300 Series, Silicone, Buna Nitrile, Noryl

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF950XLOSY.pdfData sheet

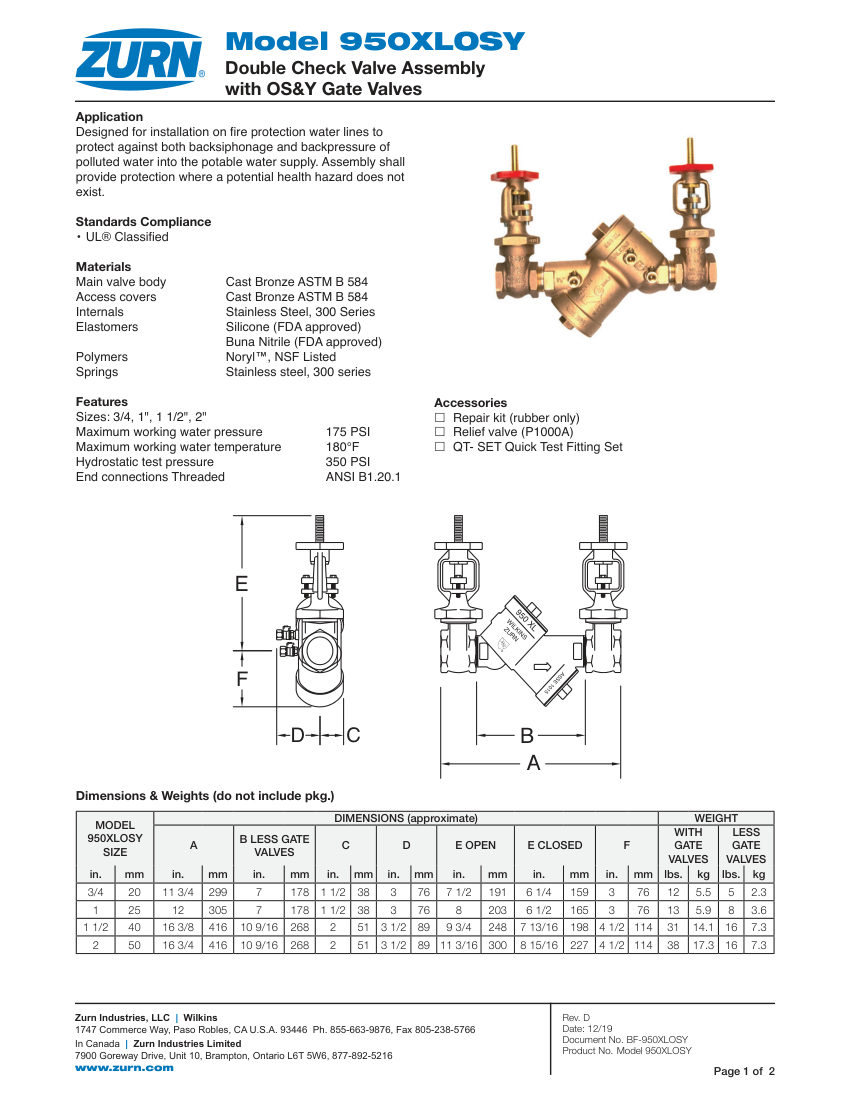

Zurn 950XLOSY cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
950XLOSY
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number950XLOSY
DescriptionZurn Double Check Valve Assembly (Backflow Prevention). Model 950XLOSY. Designed for fire protection water lines; Protects against backsiphonage and backpressure; Maximum working water temperature 180°F; Includes OS&Y Gate Valves. material: Cast Bronze ASTM B 584, Stainless Steel 300 Series, Silicone, Buna Nitrile, Noryl
Connection size3/4", 1", 1 1/2", 2"
End connectionThreaded ANSI B1.20.1
Pressure Rating175 PSI max working, 350 PSI hydrostatic
Flow RateVaries by size (e.g., 1.26-15.8 l/s)
DimensionsVaries by size (e.g., 11 3/4" to 16 3/4" length).
