DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Zurn950XLTBF950XLTBF

Zurn Top Access Double Check Valve Assembly (Backflow Prevention). Model 950XLTBF. Protects against backsiphonage and backpressure; Maximum working water temperature 180°F; Main valve body and access covers are Cast Bronze; Elastomers are FDA approved Silicone and Buna Nitrile. material: Cast Bronze ASTM B 584, Stainless Steel 300 Series, Silicone, Buna Nitrile, Noryl

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF950XLTBF.pdfData sheet

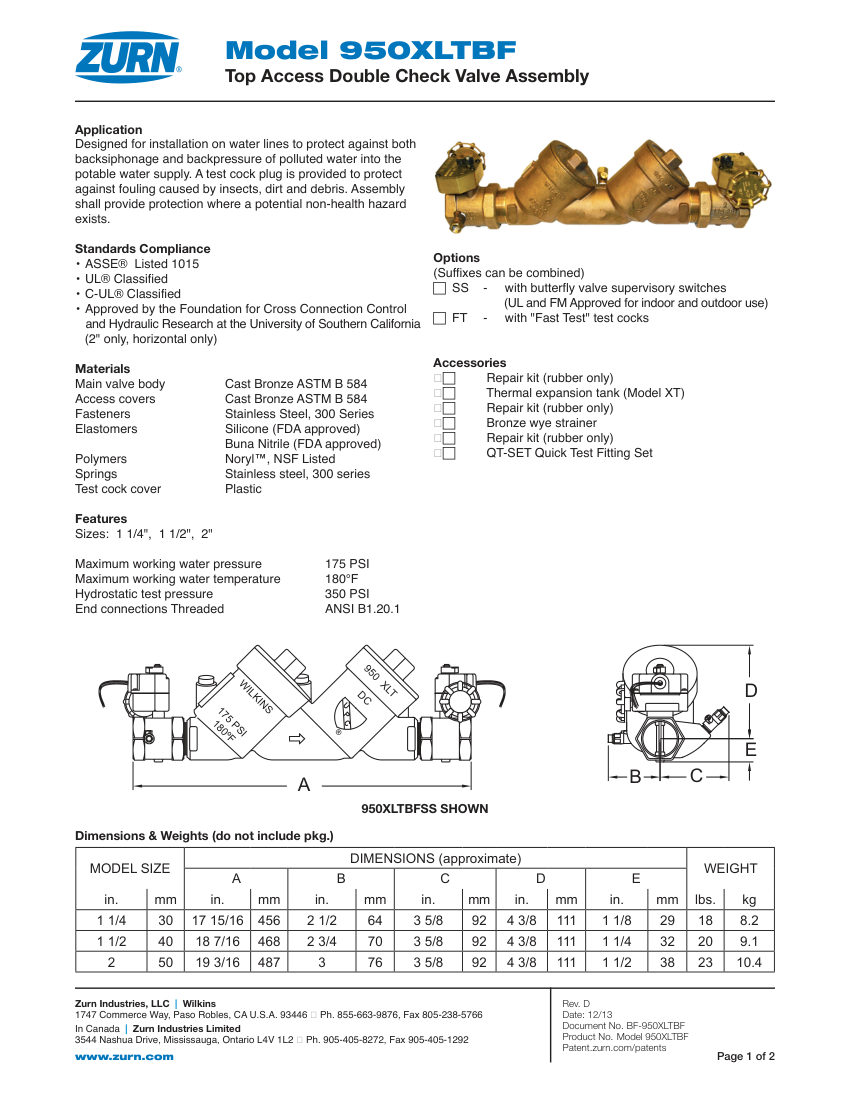

Zurn 950XLTBF cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
950XLTBF
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number950XLTBF
DescriptionZurn Top Access Double Check Valve Assembly (Backflow Prevention). Model 950XLTBF. Protects against backsiphonage and backpressure; Maximum working water temperature 180°F; Main valve body and access covers are Cast Bronze; Elastomers are FDA approved Silicone and Buna Nitrile. material: Cast Bronze ASTM B 584, Stainless Steel 300 Series, Silicone, Buna Nitrile, Noryl
Connection size1 1/4", 1 1/2", 2"
End connectionThreaded ANSI B1.20.1
Pressure Rating175 PSI max working, 350 PSI hydrostatic
MountingTop Access
DimensionsVaries by size (e.g., 1 1/4" size: A=17 15/16", B=2 1/2", C=3
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
