DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Zurn950XLTDAF950XLTDAF

Zurn Double Check Detector Assembly (Backflow Prevention). Model 950XLTDAF. Designed to replace existing 2" water meters in fire sprinkler systems; Protects against backsiphonage and backpressure; Maximum working water temperature is 180°F; Includes by-pass for minor metering capability. material: Cast Bronze ASTM B 584, Stainless Steel 300 Series, Silicone, Buna Nitrile, Noryl

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF950XLTDAF.pdfData sheet

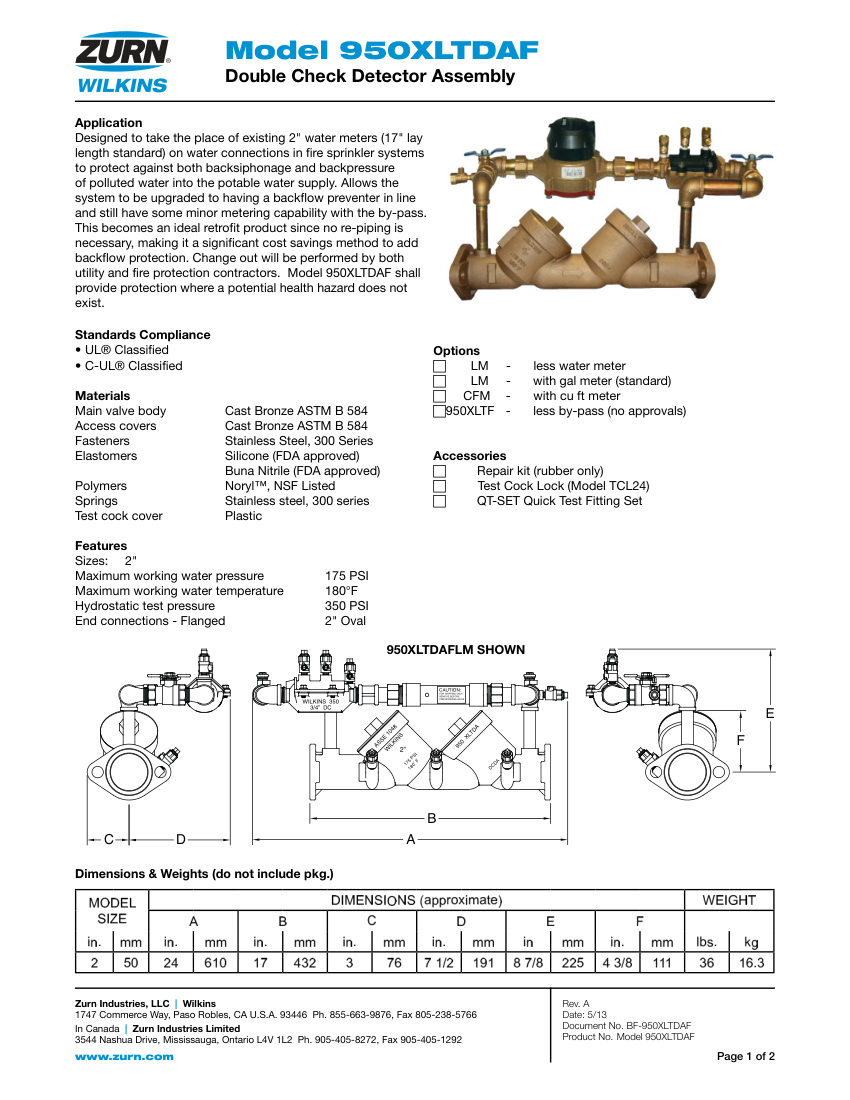

Zurn 950XLTDAF cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
950XLTDAF
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number950XLTDAF
DescriptionZurn Double Check Detector Assembly (Backflow Prevention). Model 950XLTDAF. Designed to replace existing 2" water meters in fire sprinkler systems; Protects against backsiphonage and backpressure; Maximum working water temperature is 180°F; Includes by-pass for minor metering capability. material: Cast Bronze ASTM B 584, Stainless Steel 300 Series, Silicone, Buna Nitrile, Noryl
Connection size2"
End connectionFlanged 2" Oval
Pressure Rating175 PSI working, 350 PSI hydrostatic
MountingIn-line replacement for 2" water meters
Dimensions17" lay length.
