DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Zurn975XL-14-12

Zurn Reduced Pressure Principle Assembly (Backflow Prevention). Model 975XL-14-12. Protects against backsiphonage and backpressure; Maximum working water temperature 180°F; Includes full port QT ball valves (standard); Relief valve discharge port 0.38 sq. in.. material: Cast bronze ASTM B 584, Stainless steel 300 Series, Silicone, Buna nitrile, Noryl

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF975XL-14-12.pdfData sheet

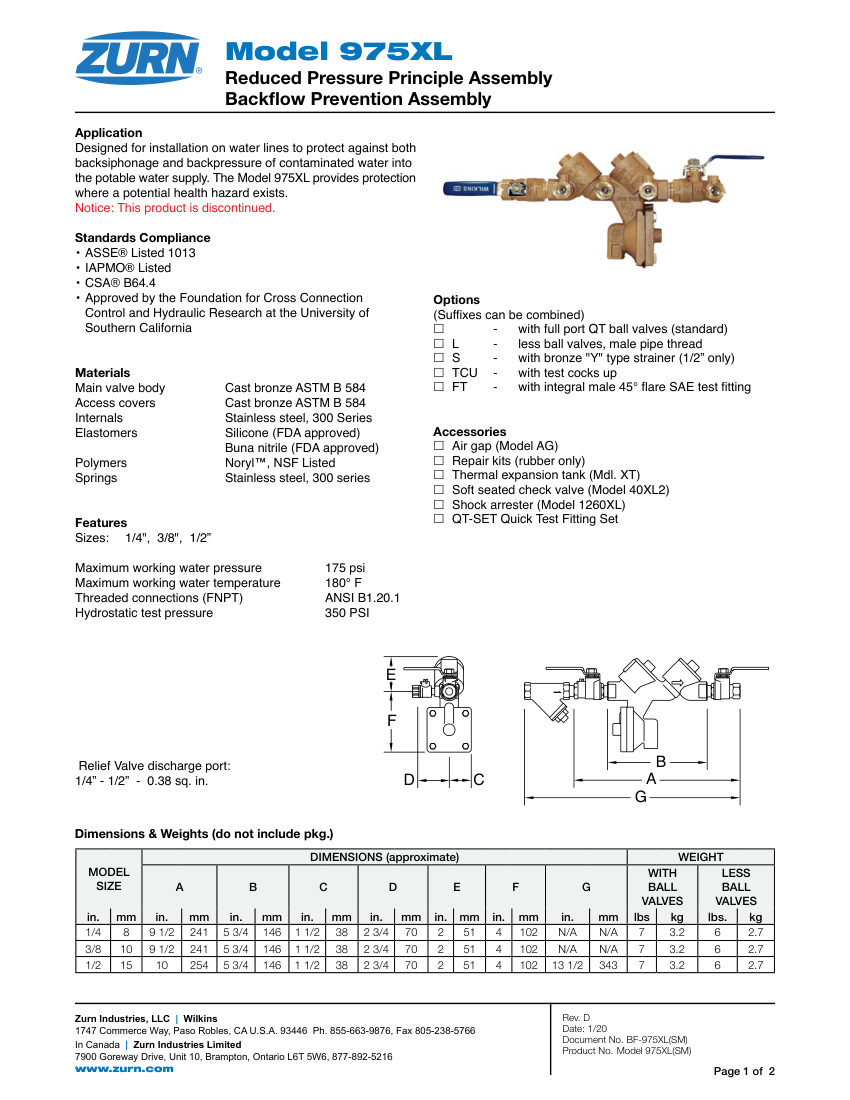

Zurn 975XL-14-12 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
975XL-14-12
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number975XL-14-12
DescriptionZurn Reduced Pressure Principle Assembly (Backflow Prevention). Model 975XL-14-12. Protects against backsiphonage and backpressure; Maximum working water temperature 180°F; Includes full port QT ball valves (standard); Relief valve discharge port 0.38 sq. in.. material: Cast bronze ASTM B 584, Stainless steel 300 Series, Silicone, Buna nitrile, Noryl
Connection size1/4"
End connectionFNPT (ANSI B1.20.1)
Pressure Rating175 psi max working, 350 PSI hydrostatic
DimensionsA: 9 1/2 in, B: 5 3/4 in, C: 1 1/2 in, D: 2 3/4 in, E: 2 in, F: 4 in
ComplianceASSE 1013, IAPMO, CSA B64.4.
