Zurn975XL-34-2 — Backflow Preventer 975XL (3/4"975XL-34-2

Zurn Reduced Pressure Principle Assembly (Backflow Preventer). Model 975XL-34-2. Protects against backsiphonage and backpressure; Maximum working water temperature 180°F; Relief valve discharge port 0.63 sq. in.; Weight 12 lbs (5.5 kg). material: Cast Bronze ASTM B 584, Stainless Steel 300 Series, Silicone, Buna Nitrile, Noryl

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF975XL-34-2.pdfData sheet

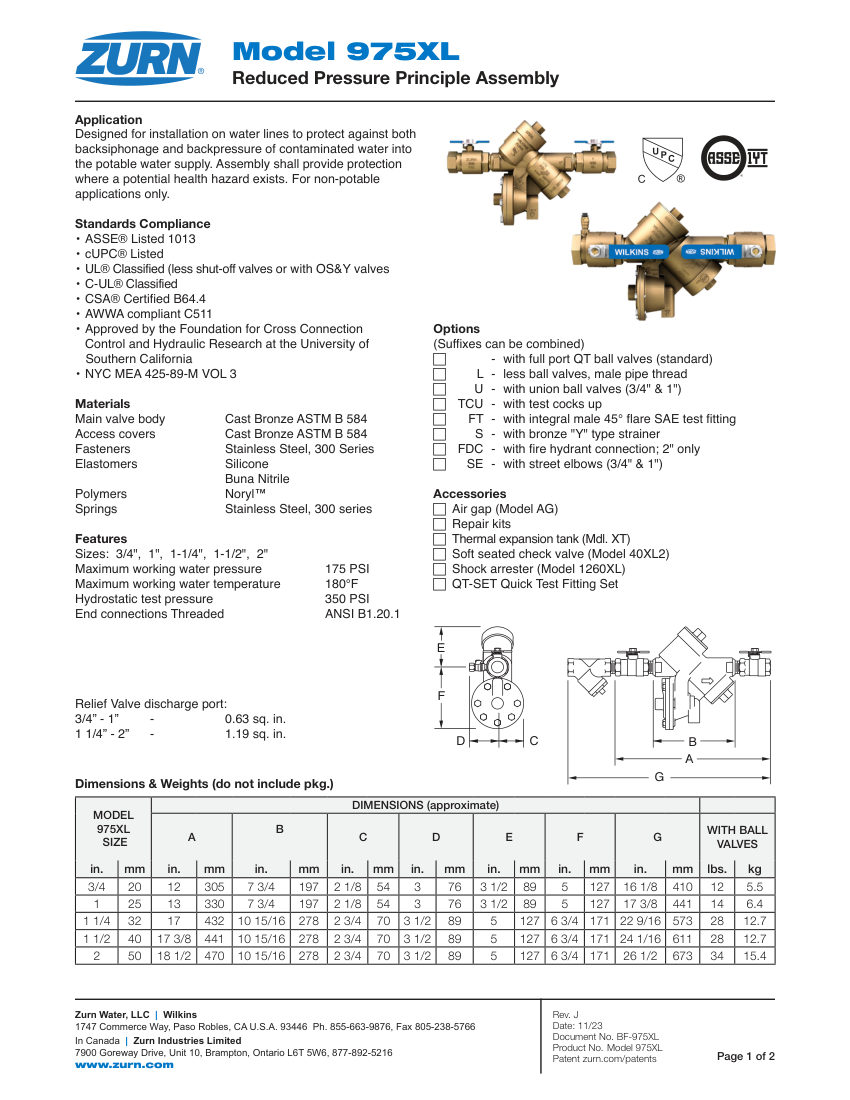

Zurn 975XL-34-2 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
975XL-34-2
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number975XL-34-2
DescriptionZurn Reduced Pressure Principle Assembly (Backflow Preventer). Model 975XL-34-2. Protects against backsiphonage and backpressure; Maximum working water temperature 180°F; Relief valve discharge port 0.63 sq. in.; Weight 12 lbs (5.5 kg). material: Cast Bronze ASTM B 584, Stainless Steel 300 Series, Silicone, Buna Nitrile, Noryl
Connection size3/4"
End connectionThreaded ANSI B1.20.1
Pressure Rating175 PSI max working, 350 PSI hydrostatic
DimensionsA: 12 in, B: 7 3/4 in, C: 2 1/8 in, D: 3 in, E: 3 1/2 in, F: 5 in, G: 16 1/8 in
ComplianceASSE 1013, cUPC, UL, C-UL, CSA B64.4, AWWA C511
