DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Zurn975XL2-34-2 — Wilkins 975XL2 Backflow Preventer975XL2-34-2

Zurn Reduced Pressure Principle Assembly (Backflow Prevention). Model 975XL2-34-2. Maximum working water temperature 180°F; Hydrostatic test pressure 350 PSI; Lead-free valves (less than 0.25% weighted average lead content); Includes full port QT ball valves (standard). material: Low Lead Cast Bronze ASTM B 584

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF975XL2-34-2.pdfData sheet

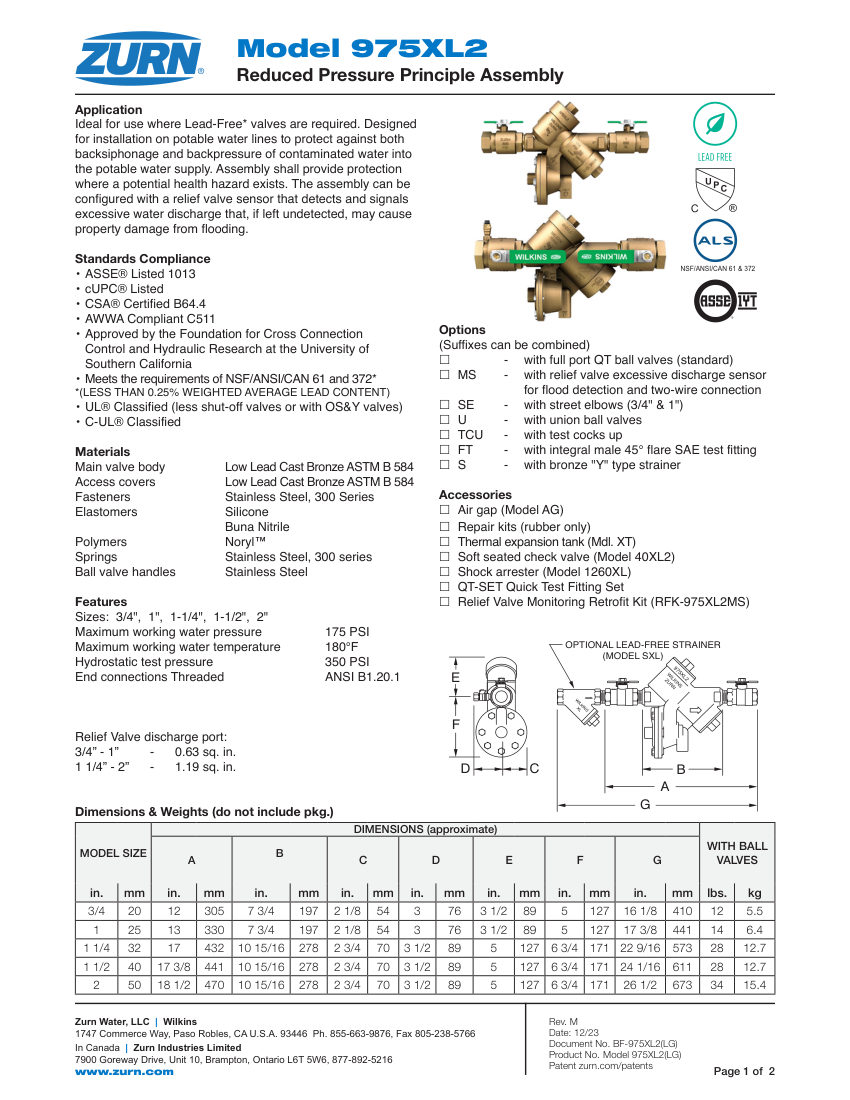

Zurn 975XL2-34-2 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
975XL2-34-2
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number975XL2-34-2
DescriptionZurn Reduced Pressure Principle Assembly (Backflow Prevention). Model 975XL2-34-2. Maximum working water temperature 180°F; Hydrostatic test pressure 350 PSI; Lead-free valves (less than 0.25% weighted average lead content); Includes full port QT ball valves (standard). material: Low Lead Cast Bronze ASTM B 584
Connection size3/4", 1", 1-1/4", 1-1/2", 2"
End connectionThreaded ANSI B1.20.1
Pressure Rating175 PSI
DimensionsVaries by size (e.g., 3/4" size: 12" x 7 3/4" x 2 1/8")
ComplianceNSF/ANSI/CAN 61 & 372, ASSE 1013, cUPC, CSA B64.4, AWWA C511.
