DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Zurn975XL2U

Zurn Reduced Pressure Principle Assembly (Backflow Prevention). Model 975XL2U. Maximum working water temperature 180°F; Lead-free valves (0.25% max weighted average lead content); Includes union ball valves; Relief valve discharge port 0.63 sq. in. (3/4"-1") or 1.19 sq. in. (1-1/4"-2"). material: Low Lead Cast Bronze ASTM B 584, Stainless Steel, Silicone, Buna Nitrile, Noryl

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF975XL2U.pdfData sheet

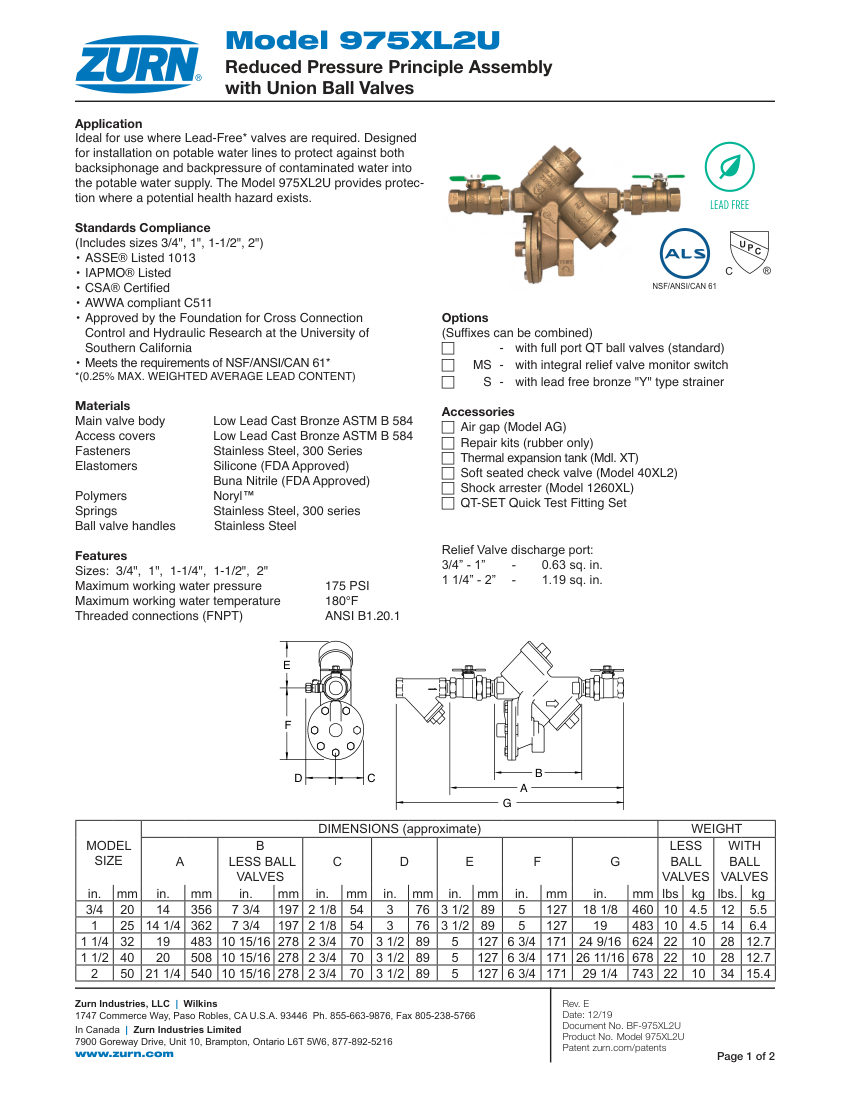

Zurn 975XL2U cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
975XL2U
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number975XL2U
DescriptionZurn Reduced Pressure Principle Assembly (Backflow Prevention). Model 975XL2U. Maximum working water temperature 180°F; Lead-free valves (0.25% max weighted average lead content); Includes union ball valves; Relief valve discharge port 0.63 sq. in. (3/4"-1") or 1.19 sq. in. (1-1/4"-2"). material: Low Lead Cast Bronze ASTM B 584, Stainless Steel, Silicone, Buna Nitrile, Noryl
Connection size3/4", 1", 1-1/4", 1-1/2", 2"
End connectionThreaded (FNPT) ANSI B1.20.1
Pressure Rating175 PSI
DimensionsVaries by size (e.g., 3/4" A=14", 2" A=21-1/4")
ComplianceASSE 1013, IAPMO, CSA, NSF/ANSI/
