Zurn975XL3 — Wilkins 975XL3 Backflow Preventer975XL3

Zurn Reduced Pressure Principle Assembly (Backflow Preventer). Model 975XL3. Lead-Free design with less than 0.25% weighted average lead content; Protects against backsiphonage and backpressure; Operating temperature range 33°F to 180°F; Includes full port QT ball valves and integral male 45° flare SAE test fitting. material: Low Lead Cast Bronze ASTM B 584, Stainless Steel 300 Series, Silicone, Buna Nitrile, Noryl

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF975XL3.pdfData sheet

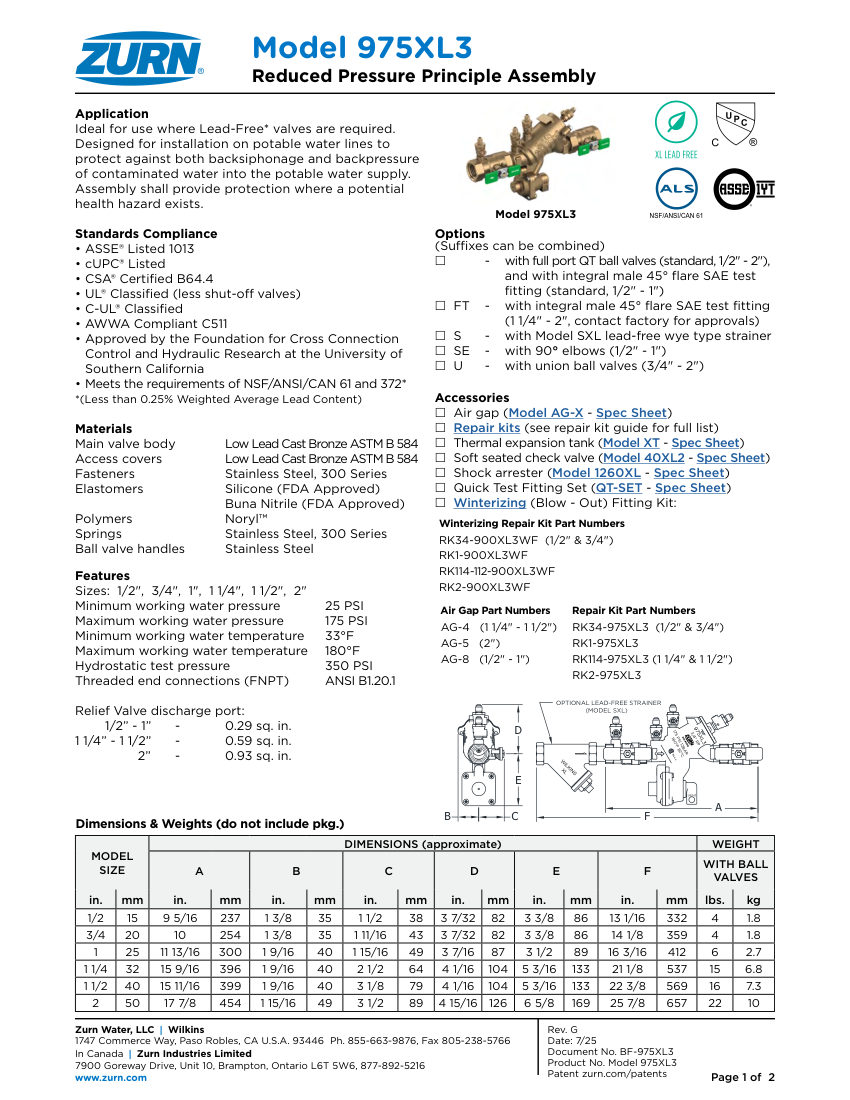

Zurn 975XL3 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
975XL3
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number975XL3
DescriptionZurn Reduced Pressure Principle Assembly (Backflow Preventer). Model 975XL3. Lead-Free design with less than 0.25% weighted average lead content; Protects against backsiphonage and backpressure; Operating temperature range 33°F to 180°F; Includes full port QT ball valves and integral male 45° flare SAE test fitting. material: Low Lead Cast Bronze ASTM B 584, Stainless Steel 300 Series, Silicone, Buna Nitrile, Noryl
Connection size1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
End connectionThreaded (FNPT) ANSI B1.20.1
Pressure RatingMin 25 PSI, Max 175 PSI, Hydrostatic 350 PSI
ComplianceNSF/ANSI/
