DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Zurn975XL3BFSS

Zurn Reduced Pressure Backflow Preventer (Backflow Prevention). Model 975XL3BFSS. Lead Free compliant (<0.25% weighted average lead content); Features slow closing resilient seated UL/FM approved butterfly shutoffs with supervisory switch; Operating temperature range 33°F to 180°F; Relief valve discharge port sizes: 0.29 sq. in. (1 1/4"-1 1/2"), 0.93 sq. in. (2"). material: Low Lead Cast Bronze ASTM B 584, Stainless Steel 300 Series, Silicone, Buna Nitrile, Noryl

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF975XL3BFSS.pdfData sheet

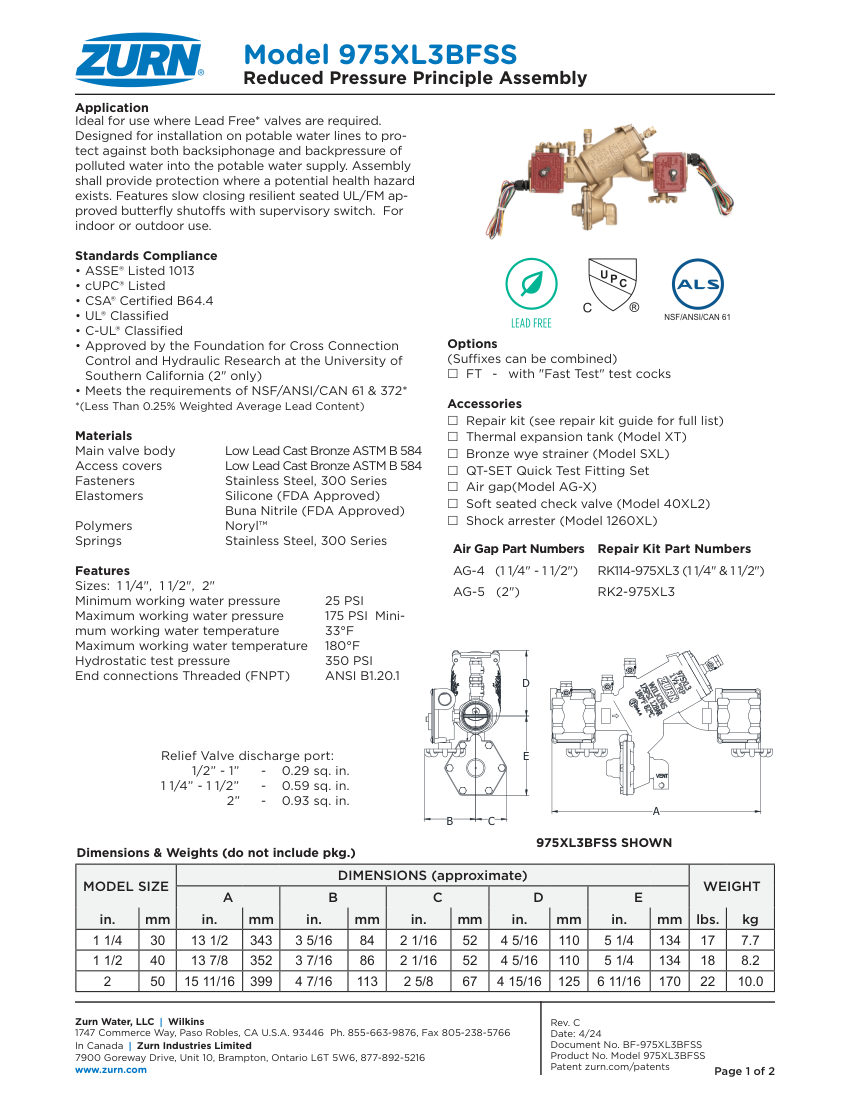

Zurn 975XL3BFSS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
975XL3BFSS
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number975XL3BFSS
DescriptionZurn Reduced Pressure Backflow Preventer (Backflow Prevention). Model 975XL3BFSS. Lead Free compliant (<0.25% weighted average lead content); Features slow closing resilient seated UL/FM approved butterfly shutoffs with supervisory switch; Operating temperature range 33°F to 180°F; Relief valve discharge port sizes: 0.29 sq. in. (1 1/4"-1 1/2"), 0.93 sq. in. (2"). material: Low Lead Cast Bronze ASTM B 584, Stainless Steel 300 Series, Silicone, Buna Nitrile, Noryl
Connection size1 1/4", 1 1/2", 2"
End connectionThreaded (FNPT) ANSI B1.20.1
Pressure RatingMin 25 PSI, Max 175 PSI, Hydrostat
  • Official cut sheet, indexed
