Zurn975XL3N — Reduced Pressure Principle Backflow Preventer N975XL3N

Zurn Reduced Pressure Principle Backflow Preventer (Backflow Preventer). Model 975XL3N. Lead-free design with less than 0.25% weighted average lead content; Maximum working water temperature of 180°F; Supplied with full port QT ball valves; Relief valve discharge port sizes range from 0.29 to 0.93 sq. in.. material: Low Lead Cast Bronze ASTM B584, Stainless Steel, NORYL, Silicone, EPDM, Buna Nitrile

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF975XL3N.pdfData sheet

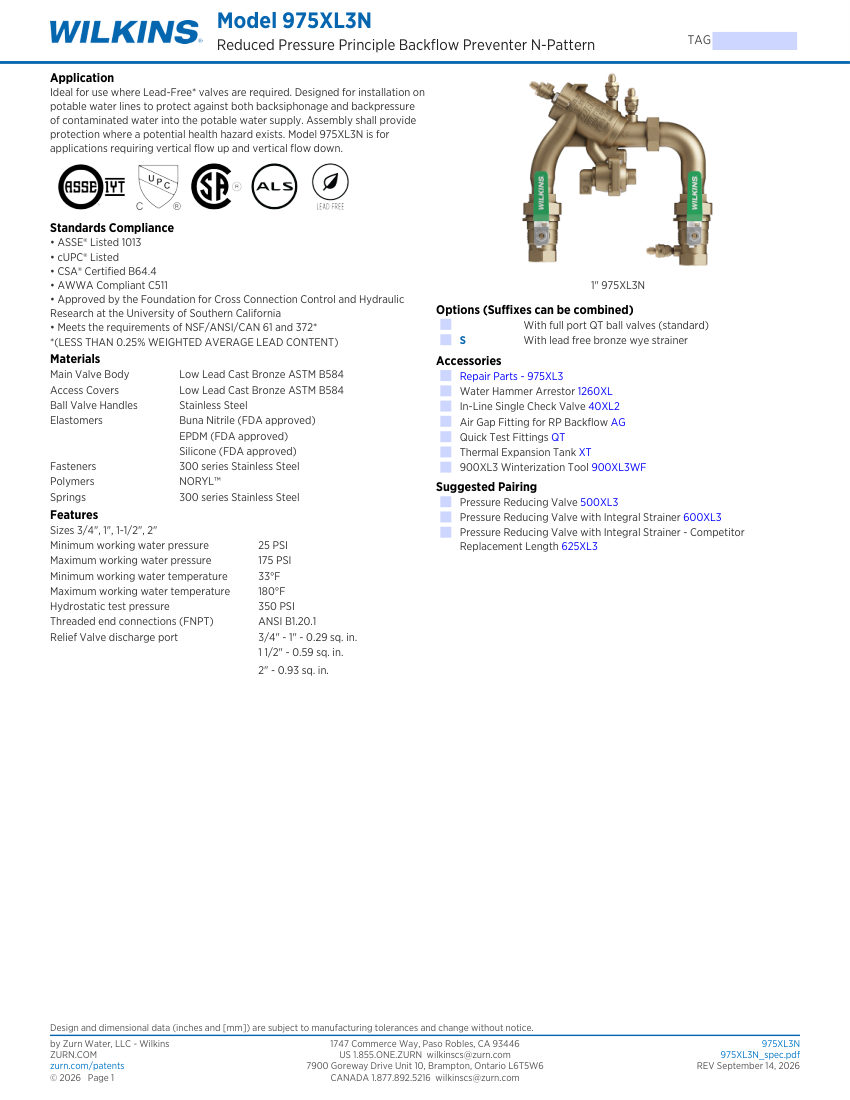

Zurn 975XL3N cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
975XL3N
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number975XL3N
DescriptionZurn Reduced Pressure Principle Backflow Preventer (Backflow Preventer). Model 975XL3N. Lead-free design with less than 0.25% weighted average lead content; Maximum working water temperature of 180°F; Supplied with full port QT ball valves; Relief valve discharge port sizes range from 0.29 to 0.93 sq. in.. material: Low Lead Cast Bronze ASTM B584, Stainless Steel, NORYL, Silicone, EPDM, Buna Nitrile
Connection size3/4", 1", 1 1/2", 2"
End connectionThreaded (FNPT) ANSI B1.20.1
Pressure RatingMin 25 PSI, Max 175 PSI, Hydrostatic 350 PSI
MountingVertical flow up and vertical flow down
