DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Zurn975XLSE975XLSE

Zurn Reduced Pressure Principle Assembly (Backflow Prevention). Model 975XLSE. Protects against backsiphonage and backpressure; Maximum working water temperature 180°F; Relief valve discharge port 0.63 sq. in. (3/4"-1") or 1.19 sq. in. (1-1/4"-2"); Includes full port QT ball valves (standard for 3/4"-1"). material: Cast Bronze ASTM B 584, Stainless Steel 300 Series, Silicone, Buna Nitrile, Noryl

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF975XLSE.pdfData sheet

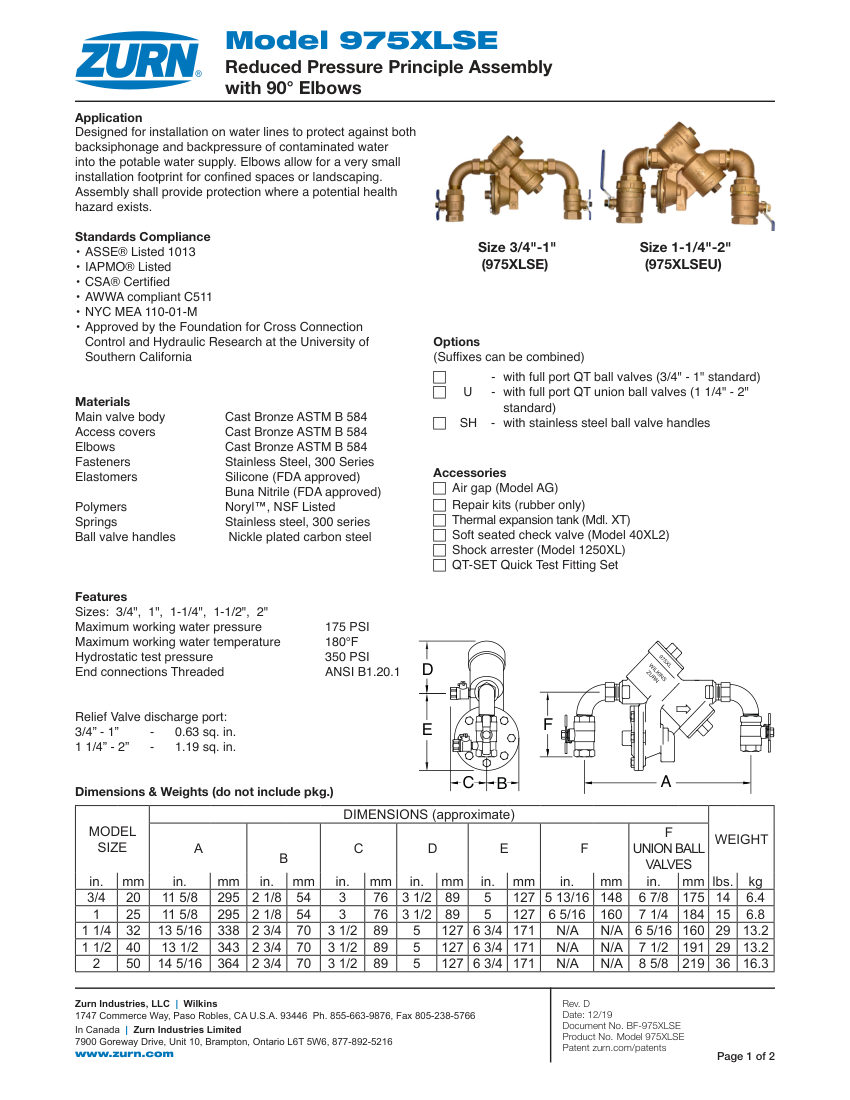

Zurn 975XLSE cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
975XLSE
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number975XLSE
DescriptionZurn Reduced Pressure Principle Assembly (Backflow Prevention). Model 975XLSE. Protects against backsiphonage and backpressure; Maximum working water temperature 180°F; Relief valve discharge port 0.63 sq. in. (3/4"-1") or 1.19 sq. in. (1-1/4"-2"); Includes full port QT ball valves (standard for 3/4"-1"). material: Cast Bronze ASTM B 584, Stainless Steel 300 Series, Silicone, Buna Nitrile, Noryl
Connection size3/4" - 2"
End connectionThreaded ANSI B1.20.1
Pressure Rating175 PSI max working, 350 PSI hydrostatic
MountingWith 90° Elbows
DimensionsVaries by size (e.g., 3/4" size: 11 5/
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
