DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Zurn975XLST975XLST

Zurn Reduced Pressure Principle Backflow Prevention Assembly (Backflow Prevention). Model 975XLST. Maximum working water temperature 180°F; Relief valve discharge port 1/4" - 1/2" - 0.38 sq. in.; Includes full port QT ball valves (standard); FDA approved elastomers. material: Stainless steel ASTM A 351, 300 Series internals, Silicone/Buna nitrile elastomers

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF975XLST.pdfData sheet

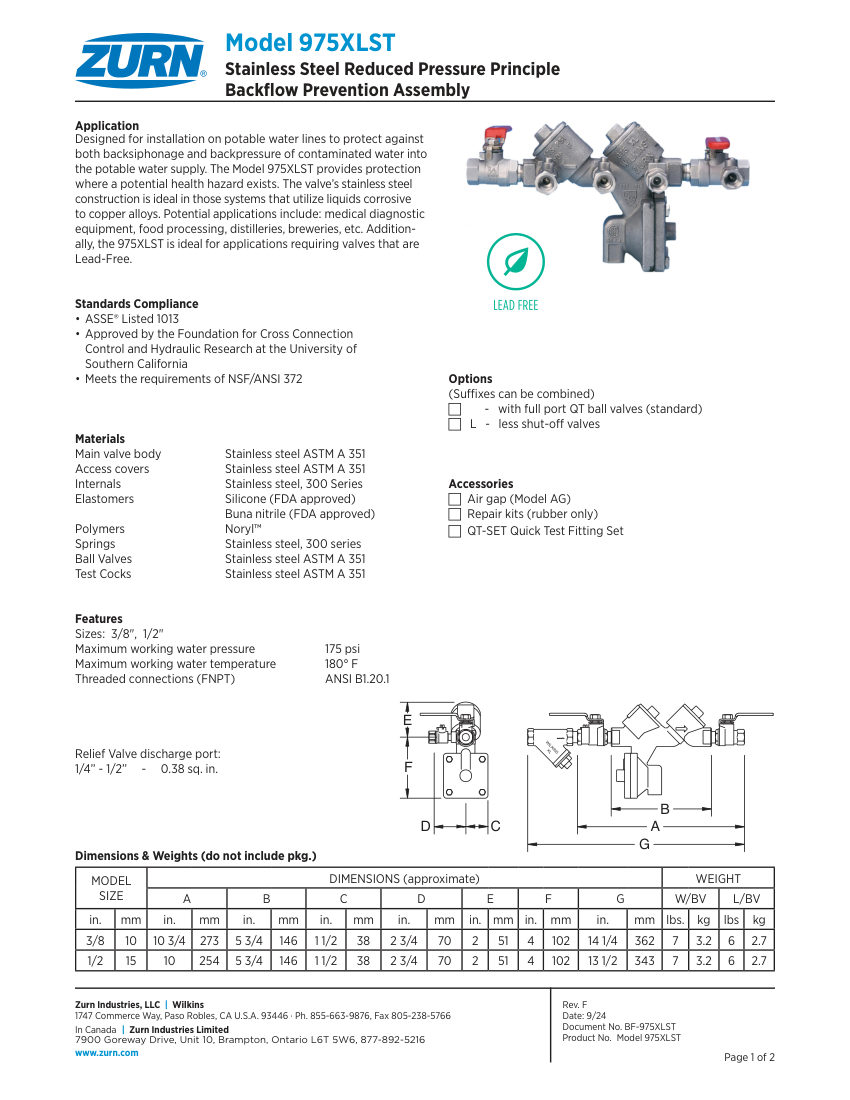

Zurn 975XLST cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
975XLST
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number975XLST
DescriptionZurn Reduced Pressure Principle Backflow Prevention Assembly (Backflow Prevention). Model 975XLST. Maximum working water temperature 180°F; Relief valve discharge port 1/4" - 1/2" - 0.38 sq. in.; Includes full port QT ball valves (standard); FDA approved elastomers. material: Stainless steel ASTM A 351, 300 Series internals, Silicone/Buna nitrile elastomers
Connection size3/8", 1/2"
End connectionThreaded (FNPT) ANSI B1.20.1
Pressure Rating175 psi
Dimensions3/8": 10" x 10 3/4" x 5 3/4"; 1/2": 15" x 10" x 5 3/4"
ComplianceASSE 1013, NSF/ANSI 372, Lead-Free.
