DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnEZC2

Zurn Top Assembly Adjustable Floor Cleanout (Floor Cleanout). Model EZC2. Includes EZ1 Technology with concrete shield and up to 1 in [25 mm] vertical post-pour adjustment; Features gas and water tight cleanout plug; Available with round or square light duty scoriated cover; Includes pre-packaged shims for tilt correction. material: PVC body, Nickel Bronze or Stainless Steel cover

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEZC2.pdfData sheet

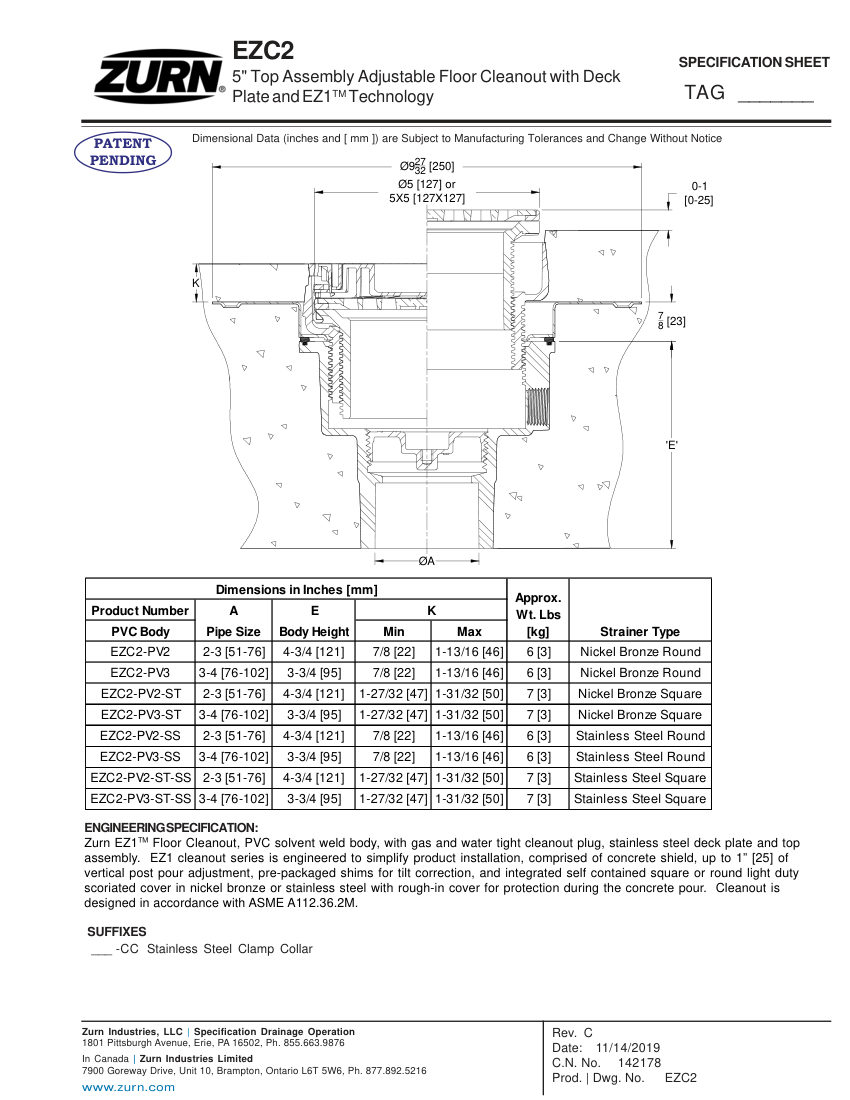

Zurn EZC2 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
EZC2
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEZC2
DescriptionZurn Top Assembly Adjustable Floor Cleanout (Floor Cleanout). Model EZC2. Includes EZ1 Technology with concrete shield and up to 1 in [25 mm] vertical post-pour adjustment; Features gas and water tight cleanout plug; Available with round or square light duty scoriated cover; Includes pre-packaged shims for tilt correction. material: PVC body, Nickel Bronze or Stainless Steel cover
Connection size2-3 in [51-76 mm] or 3-4 in [76-102 mm]
End connectionSolvent weld
FinishNickel Bronze or Stainless Steel
MountingFloor
DimensionsDeck plate 5x5 in [127x127 mm] or 5 in [127 mm] dia; Body
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
