ZurnFD1 — Top Assembly Adjustable Floor DrainFD1

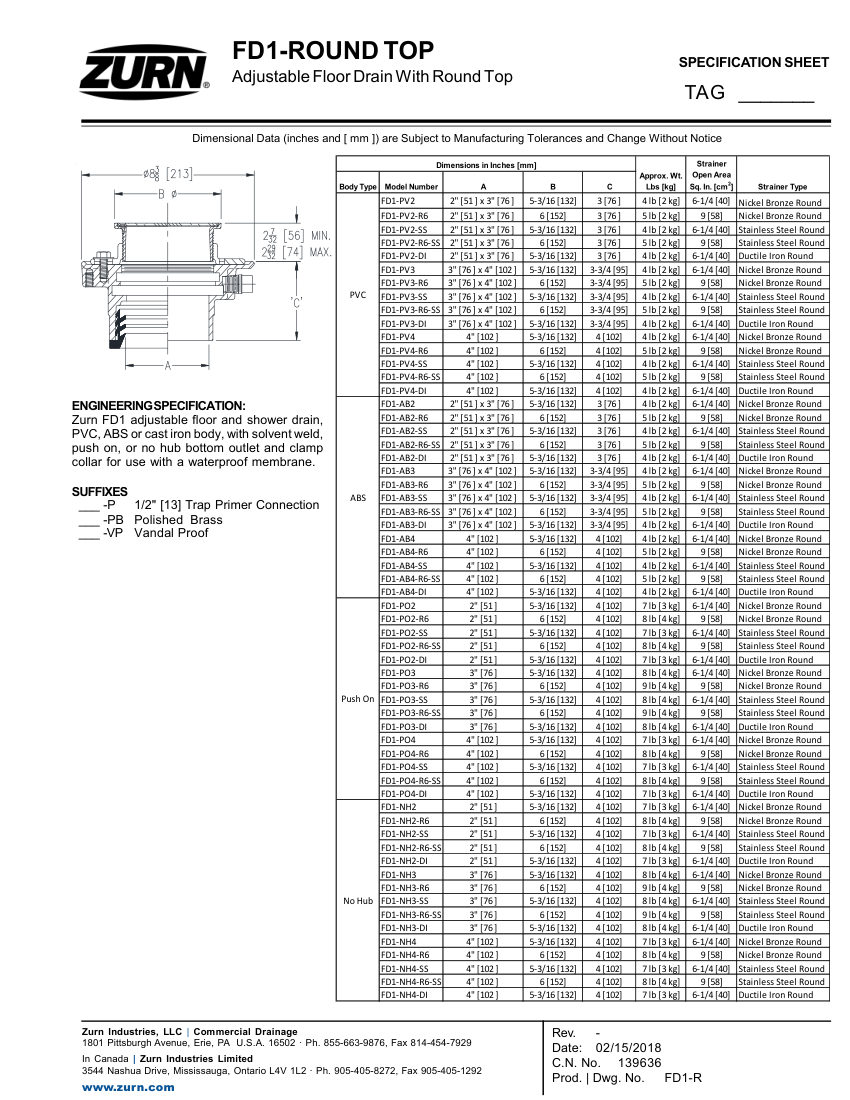

Name: Zurn FD1 — Top Assembly Adjustable Floor Drain
Brand: Zurn
SKU: FD1

Zurn Adjustable Floor Drain (Floor Drain). Model FD1. Round top assembly with adjustable height

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	FD1
Description	Zurn Adjustable Floor Drain (Floor Drain). Model FD1. Round top assembly with adjustable height
Strainer open area	6-1/4 sq. in. or 9 sq. in.
Strainer types	Nickel Bronze, Stainless Steel, or Ductile Iron; Compatible with waterproof membrane via clamp collar. material: PVC, ABS, Cast Iron, Nickel Bronze, Stainless Steel, Ductile Iron
Connection size	2" [51 mm], 3" [76 mm], 4" [102 mm]
End connection	Solvent weld, push on, no hub bottom outlet, clamp collar
Finish	Polished Brass (optional)
Mounting	Floor
Dimensions	Body: 2"x3", 3"x4", or 4"
Height	5-3/16" or 6"
Weight	4-8 lb.
