DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnFD2330

Zurn Heavy-Duty Adjustable Floor Drain (Floor Drain). Model FD-2330. Recommended for heavy vehicles or industrial applications; Includes cast iron clamp collar, leveling frame, and heavy-duty grate; Available in PVC or ABS body variants; Optional 1/2" Trap Primer Connection (-P). material: PVC or ABS body with steel-threaded inserts, cast iron clamp collar

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFFD2330.pdfData sheet

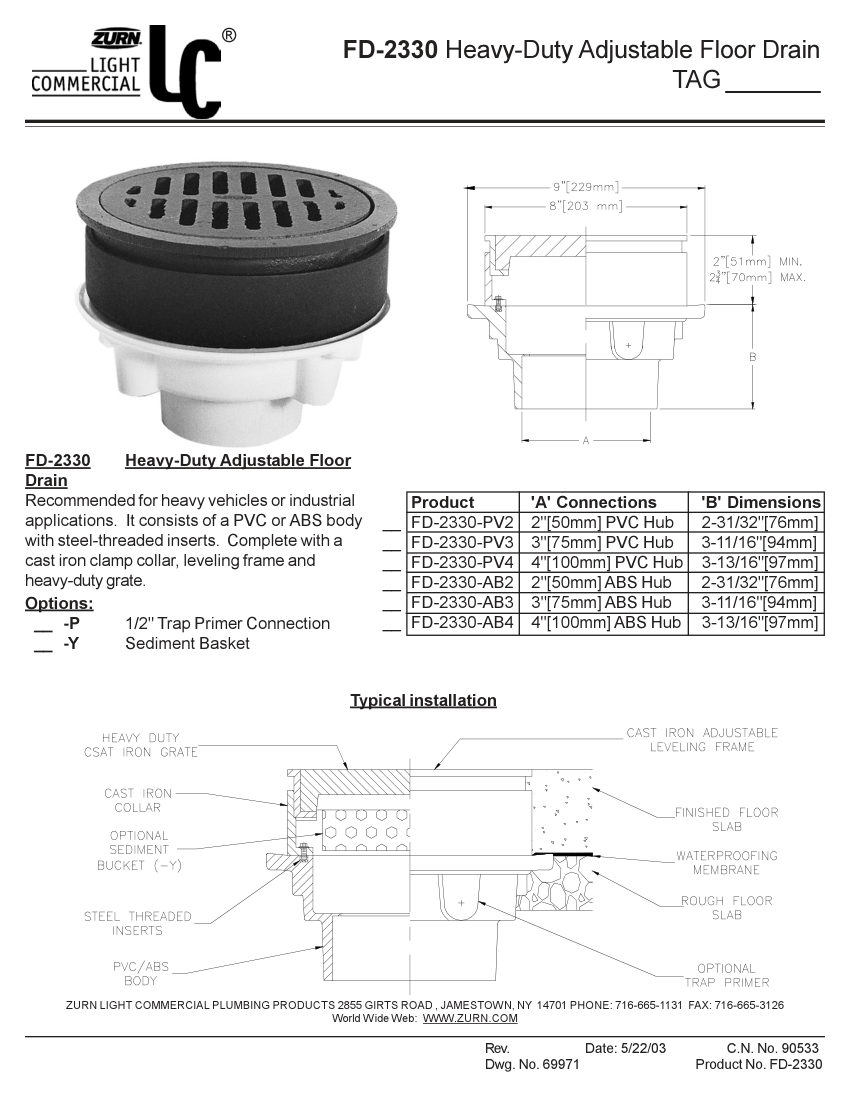

Zurn FD2330 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
FD2330
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberFD2330
DescriptionZurn Heavy-Duty Adjustable Floor Drain (Floor Drain). Model FD-2330. Recommended for heavy vehicles or industrial applications; Includes cast iron clamp collar, leveling frame, and heavy-duty grate; Available in PVC or ABS body variants; Optional 1/2" Trap Primer Connection (-P). material: PVC or ABS body with steel-threaded inserts, cast iron clamp collar
Connection size2" [50mm], 3" [75mm], or 4" [100mm] Hub
End connectionPVC or ABS Hub
MountingAdjustable with leveling frame
Dimensions2-31/32" [76mm], 3-11/16" [94mm], or 3-13/16" [97mm] (Dimension B).
