DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

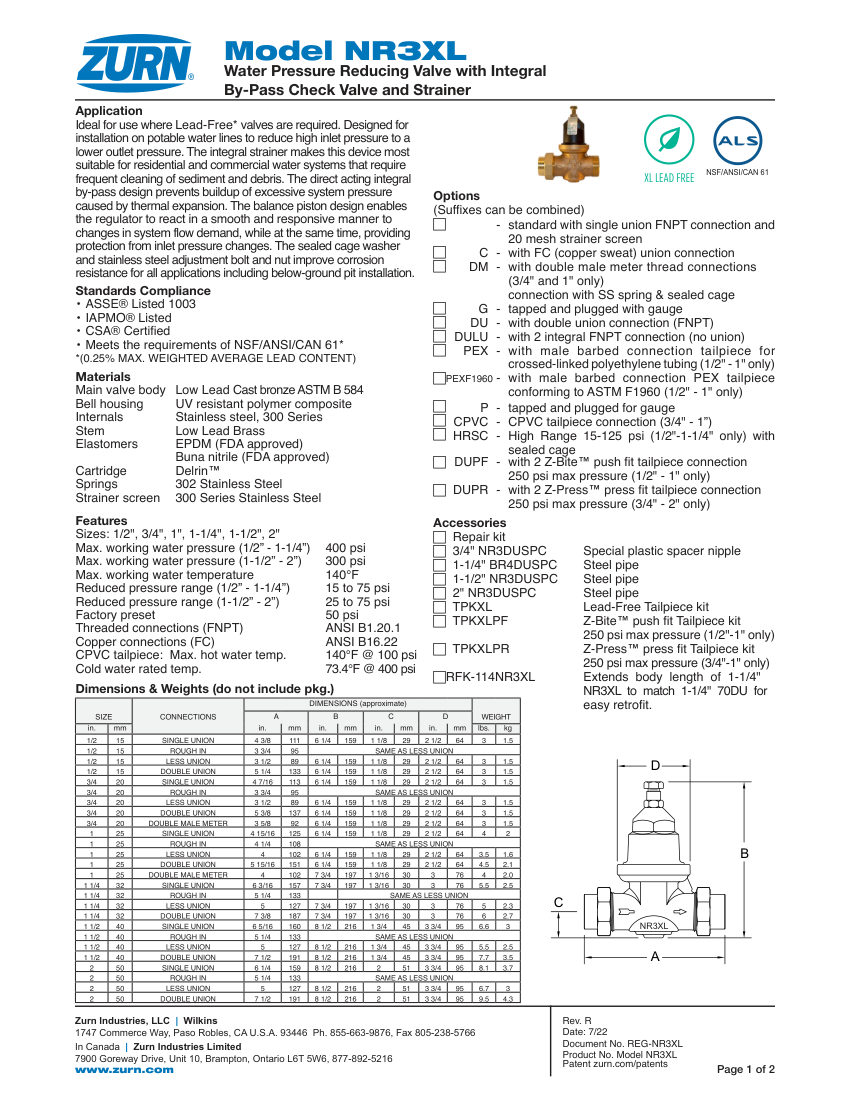

ZurnNR3XL — Wilkins NR3XL Pressure Reducing Valve Compact ResidentialNR3XL

Name: Zurn NR3XL — Wilkins NR3XL Pressure Reducing Valve Compact Residential
Brand: Zurn
SKU: NR3XL

Zurn Water Pressure Reducing Valve (Pressure Reducing Valve). Model NR3XL. Integral by-pass check valve and strainer

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	NR3XL
Description	Zurn Water Pressure Reducing Valve (Pressure Reducing Valve). Model NR3XL. Integral by-pass check valve and strainer
Reduced pressure range	15-75 psi (1/2"-1-1/4"), 25-75 psi (1-1/2"-2"); Factory preset to 50 psi; Max working water temperature: 140°F. material: Low Lead Cast Bronze, Stainless Steel, EPDM
Connection size	1/2" - 2"
End connection	FNPT, FC, DM, DU, DULU, PEX, PEXF1960, CPVC, DUPF, DUPR
Pressure Rating	400 psi (1/2"-1-1/4"), 300 psi (1-1/2"-2")
Dimensions	Varies by size (e.g., 1/2" Single Union: 4 3/8" x 6 1/4")
Compliance	ASSE 1003, IAPMO, CSA, NSF/ANSI/CAN 61.
