DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnNR3XLECNR3XLEC

Zurn Water Pressure Reducing Valve with Thermal Expansion Control Valve and Strainer (Pressure Reducing Valve). Model NR3XLEC. Maximum working water pressure: 400 psi

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFNR3XLEC.pdfData sheet

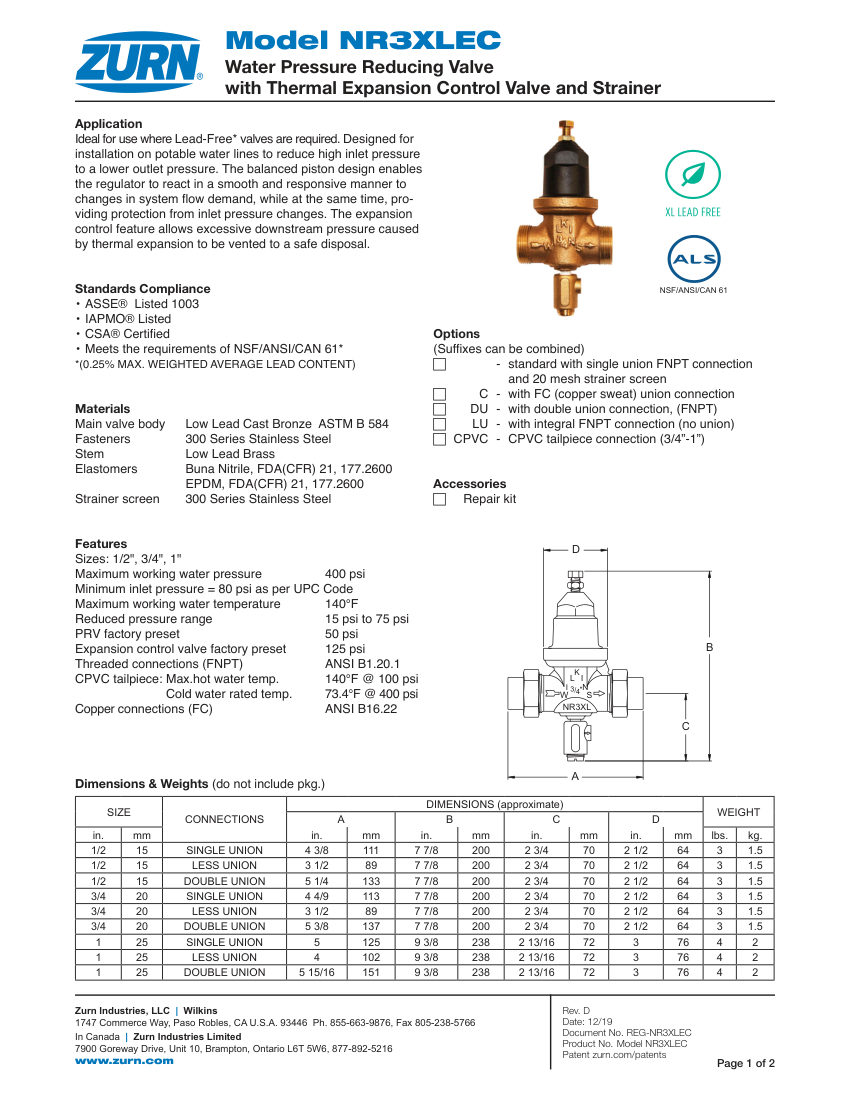

Zurn NR3XLEC cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
NR3XLEC
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberNR3XLEC
DescriptionZurn Water Pressure Reducing Valve with Thermal Expansion Control Valve and Strainer (Pressure Reducing Valve). Model NR3XLEC. Maximum working water pressure: 400 psi
Reduced pressure range15 psi to 75 psi
PRV factory preset50 psi; Expansion control valve factory preset: 125 psi. material: Low Lead Cast Bronze ASTM B 584, 300 Series Stainless Steel, Low Lead Brass, Buna Nitrile, EPDM
Connection size1/2", 3/4", 1"
End connectionFNPT, FC (copper sweat), CPVC tailpiece
Pressure Rating400 psi
DimensionsVaries by size and connection type (e.g., 1/2" Single Union: 4 3/8" x 7 7/8" x 2
