DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnQECCGXNPK1 — Expansion Transition FittingsQECCGXNPK1

Zurn Expansion PEX to Crimp Polybutylene Coupling (Expansion Transition Fittings). Model QEC_CGXNPK1. Used with Zurn Non-Barrier PEX tubing in potable water applications; Not for use in reverse osmosis systems or aggressive water chemistries; Includes appropriate size crimp and expansion ring; Requires F1960 Manual Expansion Tool Kit for installation. material: EcoBrass C69300

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFQECCGXNPK1.pdfData sheet

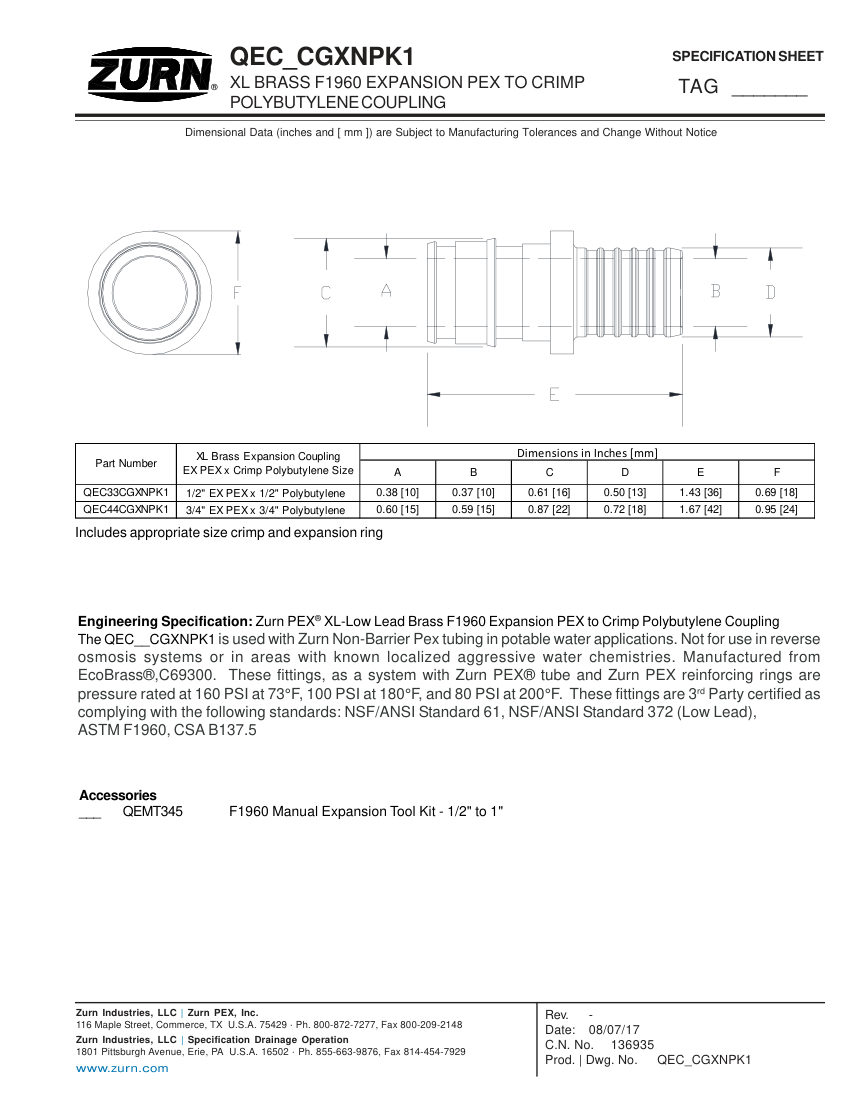

Zurn QECCGXNPK1 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
QECCGXNPK1
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberQECCGXNPK1
DescriptionZurn Expansion PEX to Crimp Polybutylene Coupling (Expansion Transition Fittings). Model QEC_CGXNPK1. Used with Zurn Non-Barrier PEX tubing in potable water applications; Not for use in reverse osmosis systems or aggressive water chemistries; Includes appropriate size crimp and expansion ring; Requires F1960 Manual Expansion Tool Kit for installation. material: EcoBrass C69300
Connection size1/2" or 3/4"
End connectionExpansion PEX to Crimp Polybutylene
Pressure Rating160 PSI at 73°F, 100 PSI at 180°F, 80 PSI at 200°F
Dimensions1/2": A=0.38", B=0.37", C=0.61", D=0.50", E=1.43", F=0.69
