ZurnRD2190 — Universal Membrane ClampRD2190

Zurn Universal Membrane Clamp (Roof Drain Accessories). Model RD2190. Designed for retrofit roof applications utilizing existing main roof drain; Accompanies 15 [381] and 16 [406] diameter roof drain bodies; Compatible with accessory bolt circles from 8 [203] to 10 1/2 [267] in diameter; Standard assembly includes cast iron UMC, hex head bolts, studs, nuts, and washers. material: Cast Iron

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFRD2190.pdfData sheet

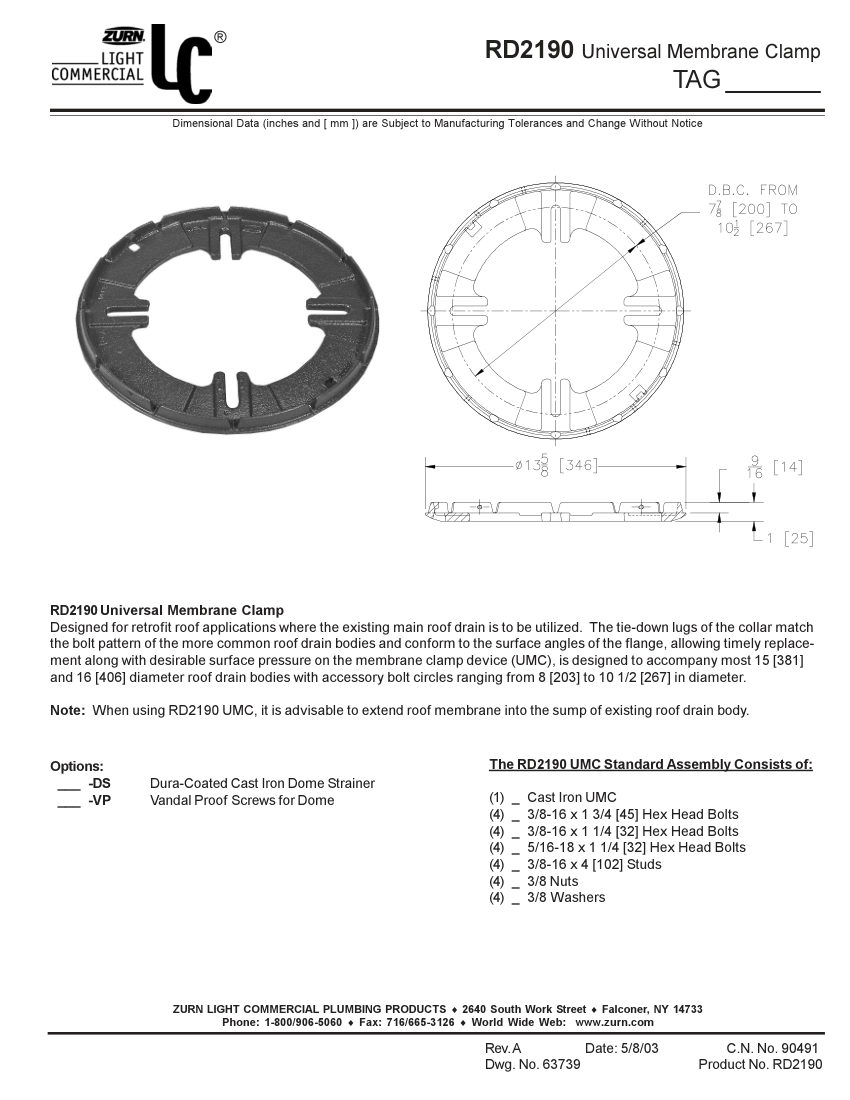

Zurn RD2190 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
RD2190
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberRD2190
DescriptionZurn Universal Membrane Clamp (Roof Drain Accessories). Model RD2190. Designed for retrofit roof applications utilizing existing main roof drain; Accompanies 15 [381] and 16 [406] diameter roof drain bodies; Compatible with accessory bolt circles from 8 [203] to 10 1/2 [267] in diameter; Standard assembly includes cast iron UMC, hex head bolts, studs, nuts, and washers. material: Cast Iron
Connection size15 [381] and 16 [406] diameter roof drain bodies
End connectionBolt pattern matching common roof drain bodies
MountingRetrofit roof applications
DimensionsAccessory bolt circles rang
