ZurnTG-5

Zurn Backflow Prevention Assembly Test Kit (Backflow Prevention). Model TG-5. 5 Valve Pressure Differential Type; Gauge Accuracy +/- 0.2 P.S.I.D. (Descending); Working Temperature Range 35°F to 150°F; Includes 3 color coded 5' hoses and 1 4' clear bleed tube. material: Molded Plastic Case, Thermoplastic Gauge Body, Brass Fittings, EP Elastomers, 316 Stainless Steel Internals, Buna Nitrile Hose

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTG-5.pdfData sheet

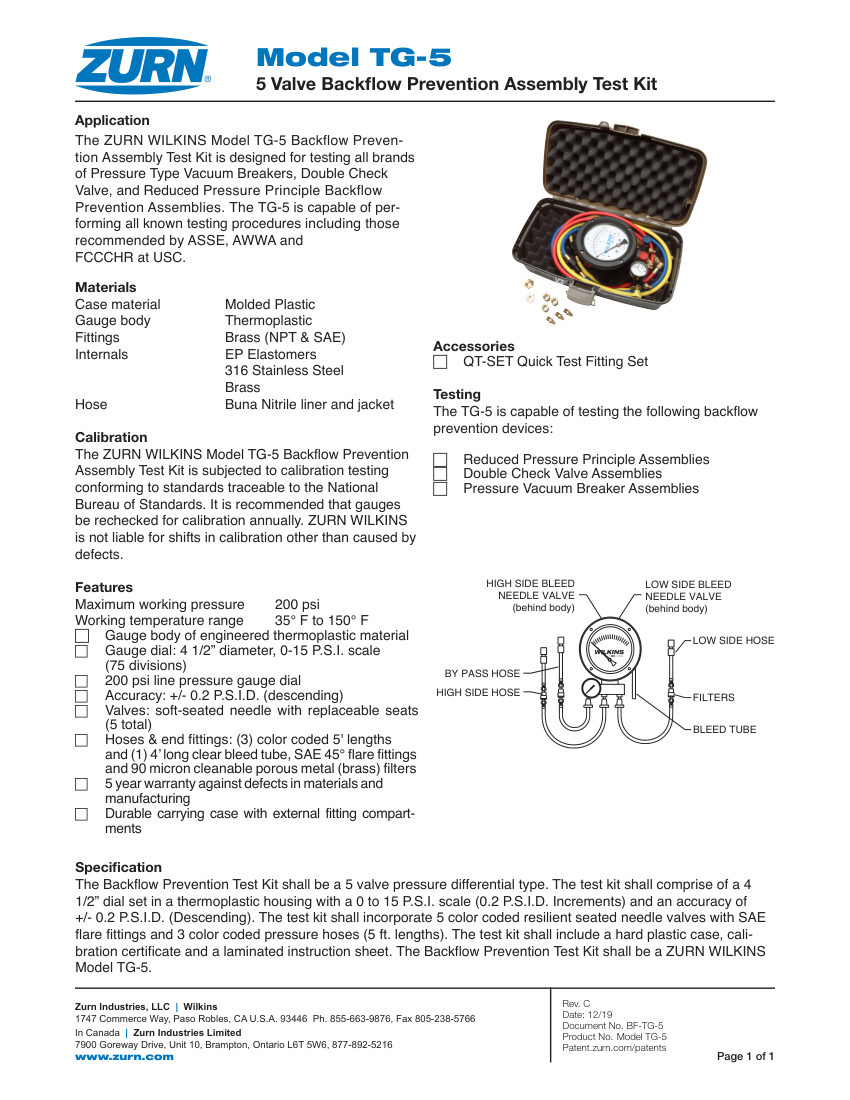

Zurn TG-5 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
TG-5
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTG-5
DescriptionZurn Backflow Prevention Assembly Test Kit (Backflow Prevention). Model TG-5. 5 Valve Pressure Differential Type; Gauge Accuracy +/- 0.2 P.S.I.D. (Descending); Working Temperature Range 35°F to 150°F; Includes 3 color coded 5' hoses and 1 4' clear bleed tube. material: Molded Plastic Case, Thermoplastic Gauge Body, Brass Fittings, EP Elastomers, 316 Stainless Steel Internals, Buna Nitrile Hose
Connection sizeSAE 45° flare fittings
End connectionSAE 45° flare
Pressure Rating200 psi
Dimensions4 1/2" gauge dial
ComplianceASSE, AWWA, FCCCHR at USC, NBS traceable calibration.
