Zurn High Performance Roof Drain (Roof Drain). Model Z100F. Parabolic funnel-shaped interior surface for efficient flow; Includes combination membrane flashing clamp and gravel guard; Low silhouette Poly-Dome maximizes effective open area; Zero head level water passage through gravel guard. material: Dura-Coated cast iron body, Poly-Dome

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ100F.pdfData sheet

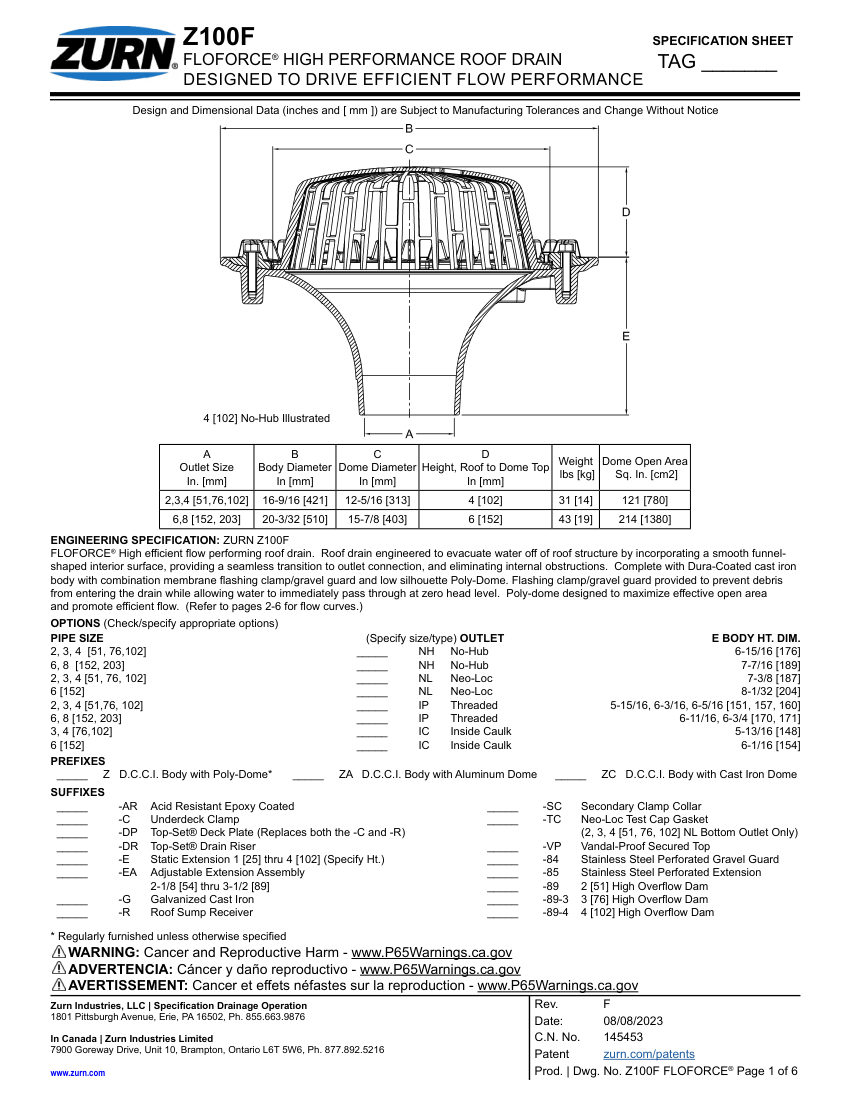

Zurn Z100F cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z100F
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ100F
DescriptionZurn High Performance Roof Drain (Roof Drain). Model Z100F. Parabolic funnel-shaped interior surface for efficient flow; Includes combination membrane flashing clamp and gravel guard; Low silhouette Poly-Dome maximizes effective open area; Zero head level water passage through gravel guard. material: Dura-Coated cast iron body, Poly-Dome
Connection size2, 3, 4, 6, 8 in [51, 76, 102, 152, 203 mm]
End connectionNo-Hub, Neo-Loc, Threaded, Inside Caulk
FinishDura-Coated
MountingRoof
DimensionsBody Diameter: 16-9/16 to 20-3/32 in [421-510 mm]
