DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ1036-STABILIZER-ASY — Z1036Z1036-STABILIZER-ASY

Zurn Floor Drain Installation Stabilizer (Drainage). Model Z1036. Variable pipe opening for 2, 3, and 4 inch pipes; Includes hardware bag with four 3/8-16 x 12 in studs and eight flanged locknuts; Stud hole diameter B (10-5/8 in) accommodates 12 in drain body; Stud hole diameter C (12-1/2 in) accommodates 15 in drain body. material: #20 gage galvanized steel plate

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ1036-STABILIZER-ASY.pdfData sheet

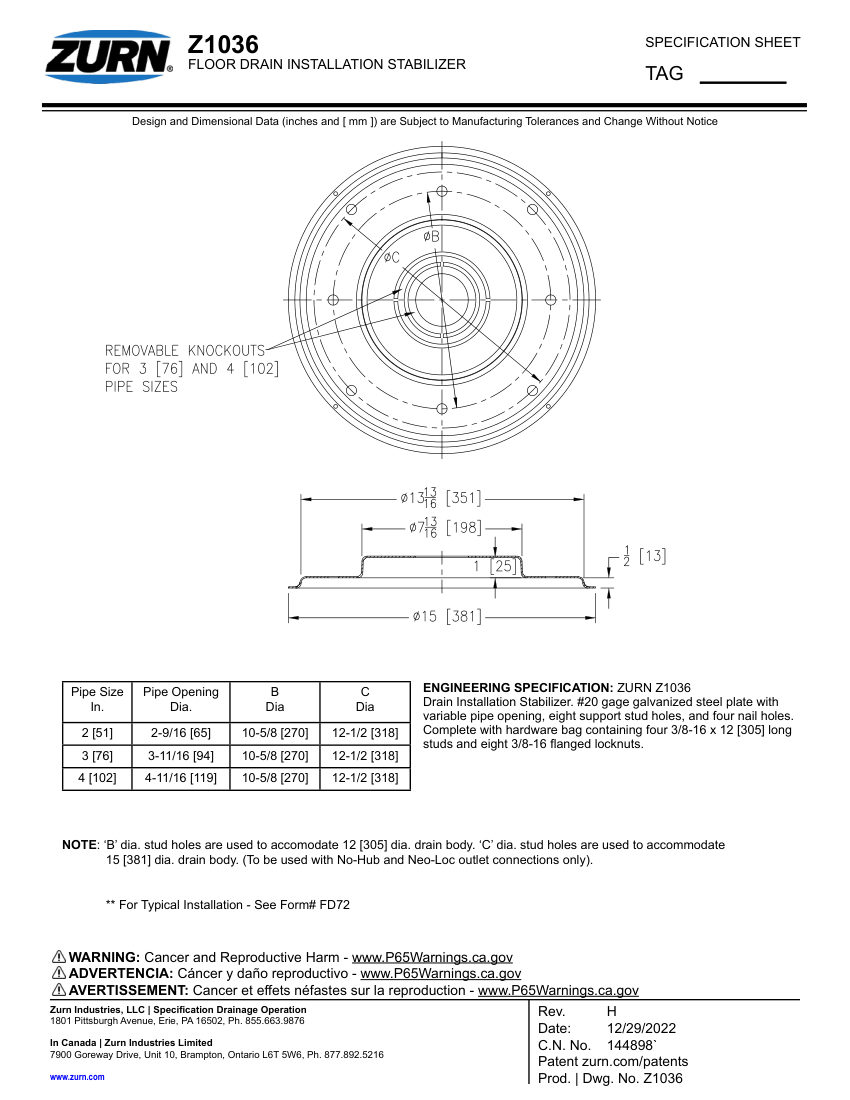

Zurn Z1036-STABILIZER-ASY cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z1036-STABILIZER-ASY
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ1036-STABILIZER-ASY
DescriptionZurn Floor Drain Installation Stabilizer (Drainage). Model Z1036. Variable pipe opening for 2, 3, and 4 inch pipes; Includes hardware bag with four 3/8-16 x 12 in studs and eight flanged locknuts; Stud hole diameter B (10-5/8 in) accommodates 12 in drain body; Stud hole diameter C (12-1/2 in) accommodates 15 in drain body. material: #20 gage galvanized steel plate
Connection size2, 3, 4 in
End connectionNo-Hub and Neo-Loc outlet connections
FinishGalvanized
MountingEight support stud holes and four nail holes
DimensionsB Dia 10-5/8 in, C Dia 12-1/2 in.

Also cataloged as: Z1036
