DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ1088 — Z1088 Gate Type Backwater Valve PVC Flapper, Bronze CheckZ1088

Zurn Gate Type Backwater Valve (Backwater Valve). Model Z1088. Automatic PVC flapper type backwater valve; Spade type bronze gate valve with O-ring seat insert; Controlled by covered handle engaging bronze non-rising stem; Not designed nor intended to be used as a shut-off valve. material: Dura-Coated cast iron body, PVC flapper, bronze gate valve

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ1088.pdfData sheet

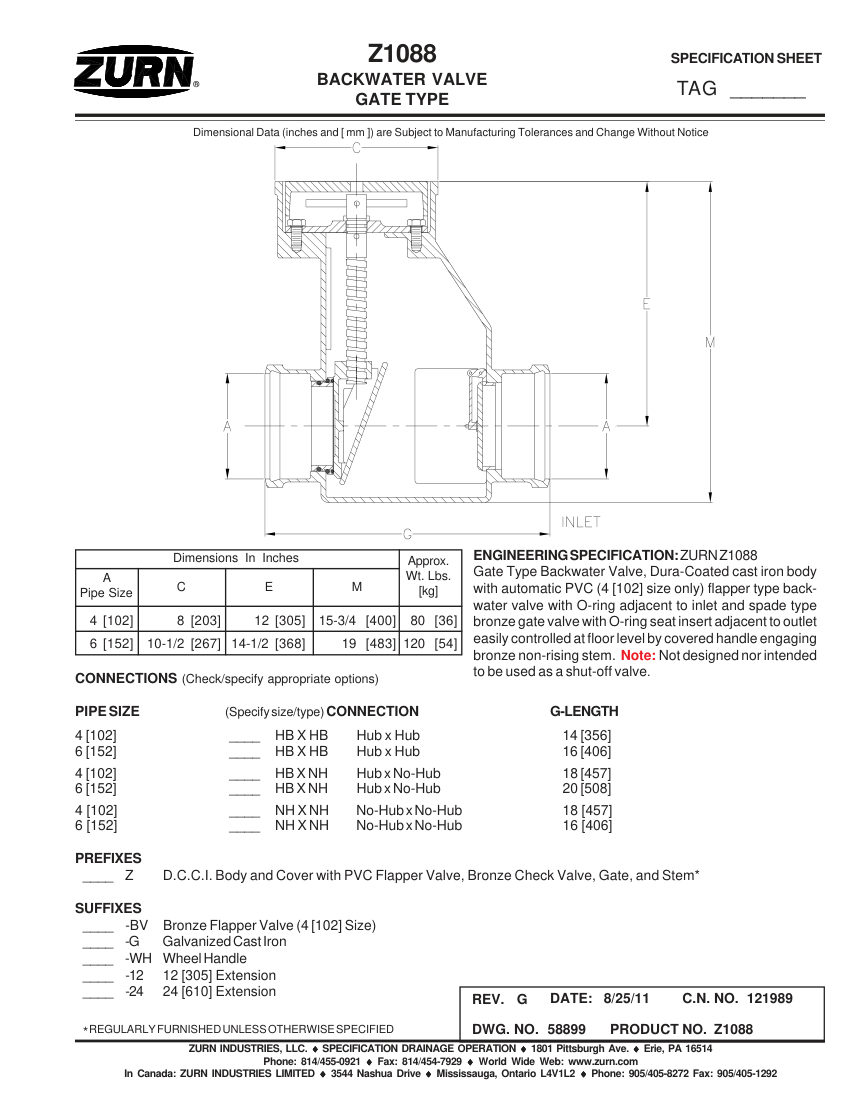

Zurn Z1088 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z1088
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ1088
DescriptionZurn Gate Type Backwater Valve (Backwater Valve). Model Z1088. Automatic PVC flapper type backwater valve; Spade type bronze gate valve with O-ring seat insert; Controlled by covered handle engaging bronze non-rising stem; Not designed nor intended to be used as a shut-off valve. material: Dura-Coated cast iron body, PVC flapper, bronze gate valve
Connection size4 [102], 6 [152]
End connectionHub x Hub, Hub x No-Hub, No-Hub x No-Hub
FinishDura-Coated
MountingFloor level
Dimensions4" [102]: A=8, C=12, M=15-3/4; 6" [152]: A=10-1/2, C=14-1/2, M=19.
