DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ1171-RD

Zurn Low Profile Grease Interceptor (Grease Interceptor). Model Z1171-RD. Includes rigid pipe draw-off, accumulating cone, and in-line shutoff valve; Features internal air relief by-pass and bronze cleanout plug; Equipped with visible double wall trap seal and removable baffle; Complete with Z1108 flow control fitting. material: Acid Resistant Coated Fabricated Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ1171-RD.pdfData sheet

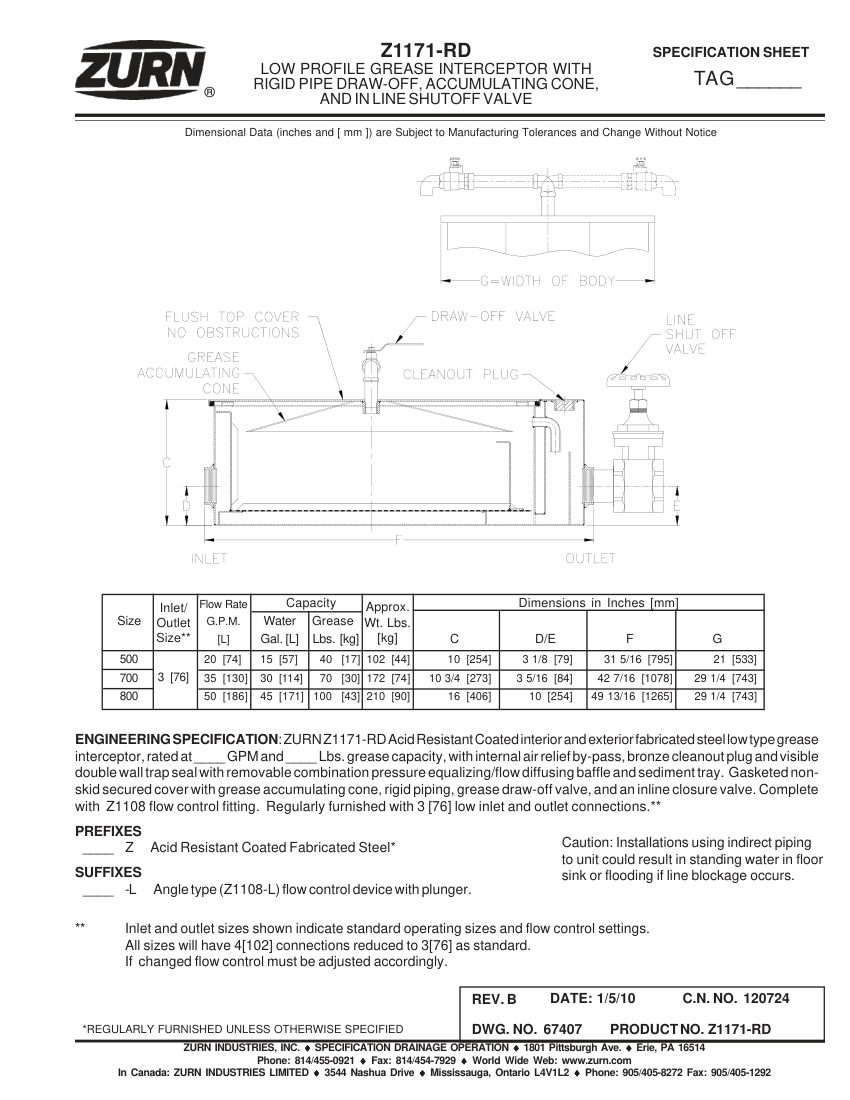

Zurn Z1171-RD cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z1171-RD
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ1171-RD
DescriptionZurn Low Profile Grease Interceptor (Grease Interceptor). Model Z1171-RD. Includes rigid pipe draw-off, accumulating cone, and in-line shutoff valve; Features internal air relief by-pass and bronze cleanout plug; Equipped with visible double wall trap seal and removable baffle; Complete with Z1108 flow control fitting. material: Acid Resistant Coated Fabricated Steel
Connection size3 [76] (Standard), 4 [102] (Reduced)
End connectionRigid Pipe Draw-Off
Flow Rate20 [74] GPM (500), 35 [130] GPM (700), 50 [186] GPM (800)
FinishAcid Resistant Coated
MountingLow Profile.
