ZurnZ1172-UN

Zurn Large Capacity Grease Interceptor (Zurn Z1172). Model Z1172-UN. Includes user notification system with electronic grease level sensor; Features internal air relief by-pass and visible double wall trap seal; Equipped with bronze cleanout plug and removable pressure equalizing baffle; Display box includes green power light, red grease level light, and audio alarm. material: Acid Resistant Coated Fabricated Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ1172-UN.pdfData sheet

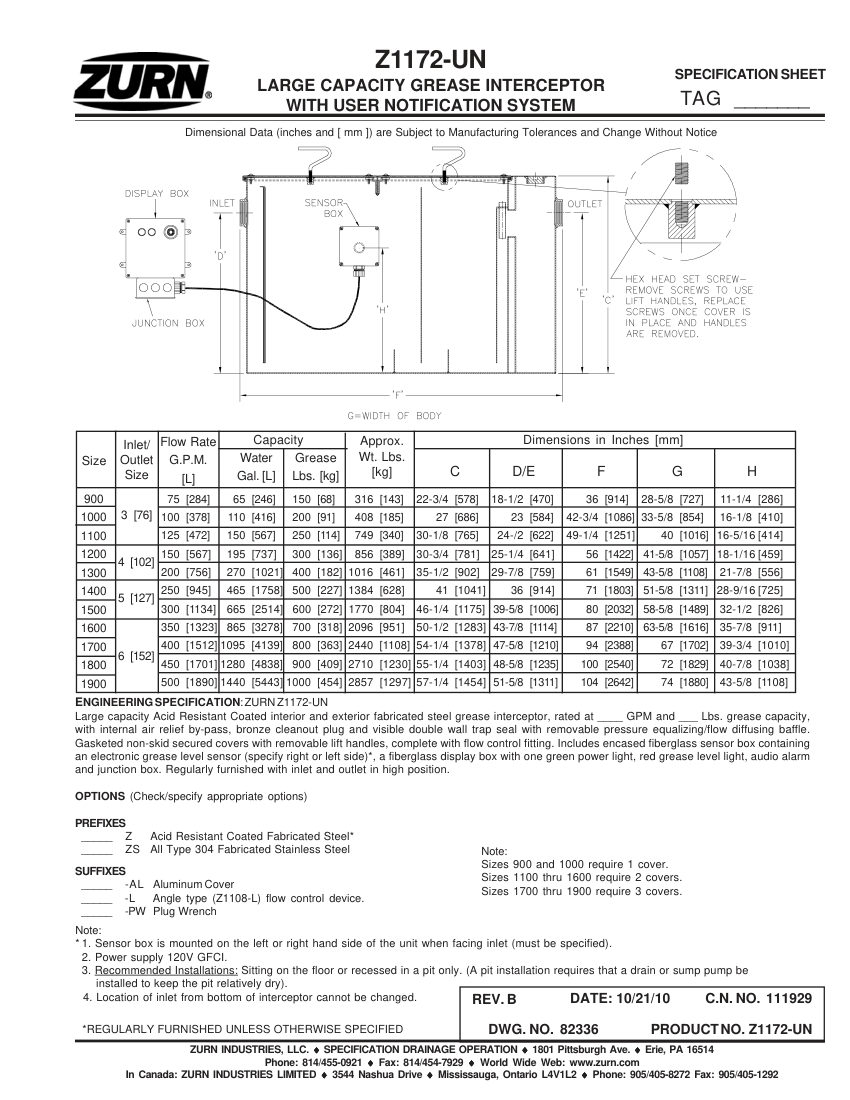

Zurn Z1172-UN cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z1172-UN
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ1172-UN
DescriptionZurn Large Capacity Grease Interceptor (Zurn Z1172). Model Z1172-UN. Includes user notification system with electronic grease level sensor; Features internal air relief by-pass and visible double wall trap seal; Equipped with bronze cleanout plug and removable pressure equalizing baffle; Display box includes green power light, red grease level light, and audio alarm. material: Acid Resistant Coated Fabricated Steel
Connection size3, 4, 5, 6 inch inlet/outlet
End connectionHigh position inlet and outlet
Flow Rate75 to 500 GPM
FinishAcid Resistant Coated
MountingFloor sitting or rece
