DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ1173-RD

Zurn Grease Interceptor. Model Z1173-RD. Includes rigid pipe draw-off, accumulating cone, and in-line shutoff valve; Features internal air relief by-pass and bronze cleanout plug; Visible double wall trap seal with removable baffle and sediment tray; Gasketed non-skid secured cover. material: Acid Resistant Coated Fabricated Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ1173-RD.pdfData sheet

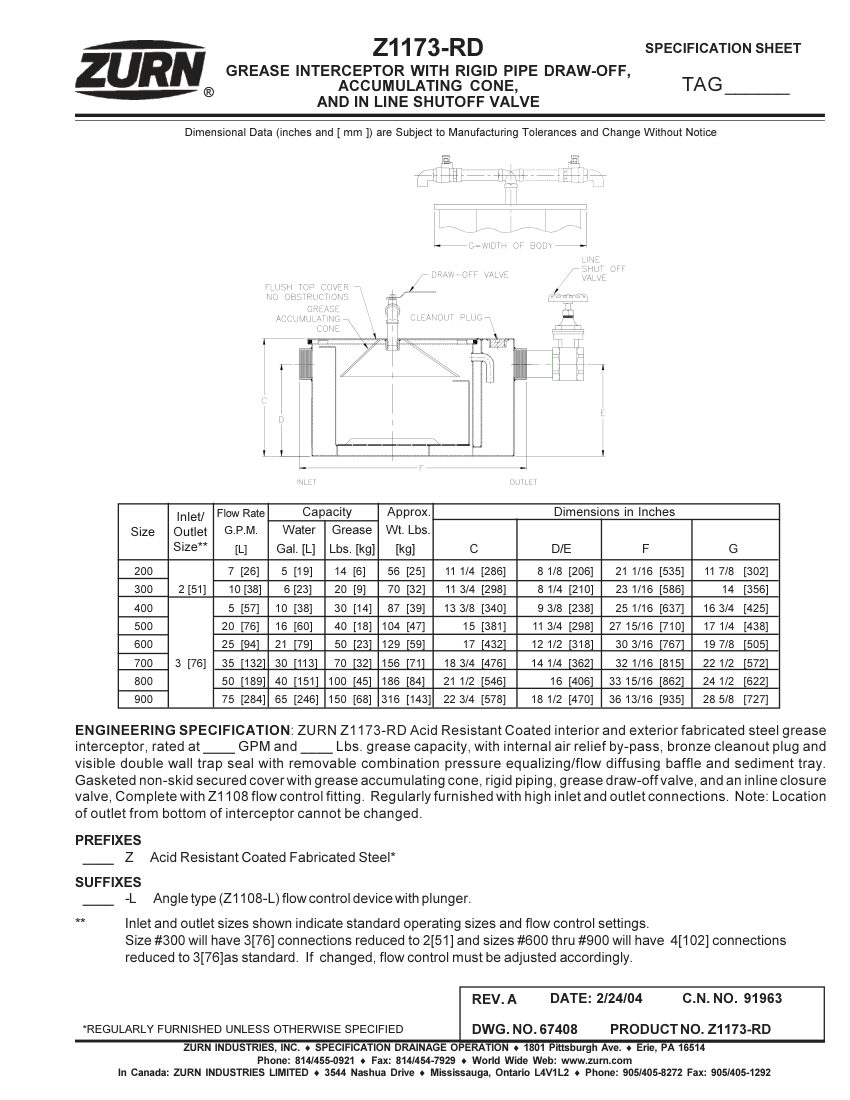

Zurn Z1173-RD cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z1173-RD
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ1173-RD
DescriptionZurn Grease Interceptor. Model Z1173-RD. Includes rigid pipe draw-off, accumulating cone, and in-line shutoff valve; Features internal air relief by-pass and bronze cleanout plug; Visible double wall trap seal with removable baffle and sediment tray; Gasketed non-skid secured cover. material: Acid Resistant Coated Fabricated Steel
Connection size2" to 5" (Standard operating sizes vary by model)
End connectionHigh inlet and outlet connections
Flow Rate7 to 75 GPM
FinishAcid Resistant Coated
DimensionsVaries by model (e.g., 200: 21 1/16" L x 11 7/8" W x 11 1/4" H).
