DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ1188

Zurn Large Capacity Oil Interceptor (Oil Interceptor). Model Z1188. Flow rates range from 75 to 500 GPM; Water capacity ranges from 65 to 1435 gallons; Features visible double wall trap seal; Includes removable combination pressure equalizing/flow diffusing baffle. material: Acid Resistant Coated Fabricated Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ1188.pdfData sheet

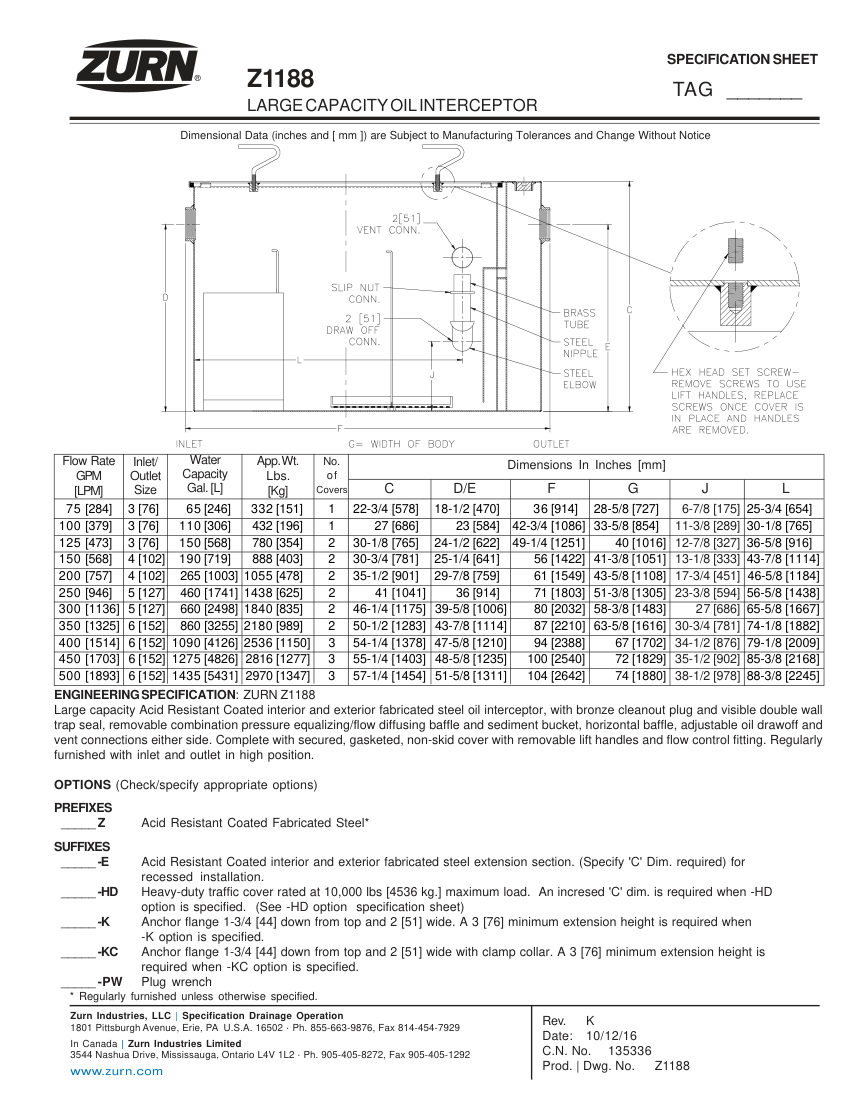

Zurn Z1188 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z1188
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ1188
DescriptionZurn Large Capacity Oil Interceptor (Oil Interceptor). Model Z1188. Flow rates range from 75 to 500 GPM; Water capacity ranges from 65 to 1435 gallons; Features visible double wall trap seal; Includes removable combination pressure equalizing/flow diffusing baffle. material: Acid Resistant Coated Fabricated Steel
Connection size3-6 inch inlet/outlet
End connectionBronze cleanout plug, adjustable oil drawoff and vent connections
Flow Rate75-500 GPM
FinishAcid Resistant Coated interior and exterior
MountingRecessed installation with secured, gasketed, non-skid cover.
