DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ1196

Zurn Oil Interceptor with Oil Level Sensor (Oil Interceptor). Model Z1196. Includes electronic oil level sensor with audible alarm and display box; Features bronze cleanout plug and visible double wall trap seal; Removable combination pressure equalizing/flow diffusing baffle; Sensor box mounting side (left or right) must be specified. material: Acid Resistant Coated Fabricated Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ1196.pdfData sheet

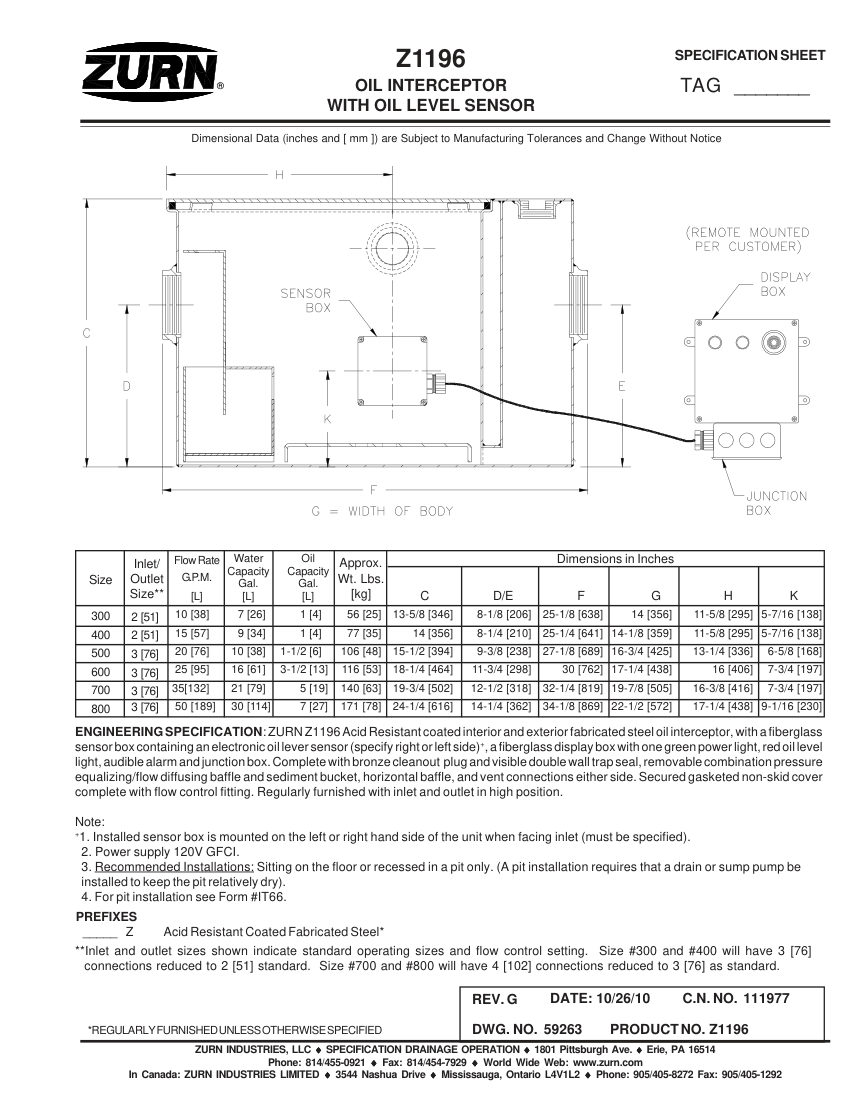

Zurn Z1196 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z1196
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ1196
DescriptionZurn Oil Interceptor with Oil Level Sensor (Oil Interceptor). Model Z1196. Includes electronic oil level sensor with audible alarm and display box; Features bronze cleanout plug and visible double wall trap seal; Removable combination pressure equalizing/flow diffusing baffle; Sensor box mounting side (left or right) must be specified. material: Acid Resistant Coated Fabricated Steel
Connection size2 [51] to 3 [76] (varies by model size)
End connectionInlet/Outlet
Flow Rate10 [38] to 50 [189] G.P.M.
FinishAcid Resistant Coated
MountingFloor or Recessed in Pit.
