DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ1203-N

Zurn Adjustable Horizontal Siphon Jet Water Closet (Water Closet). Model Z1203-N. Rigid System with No-Hub connections; Includes gasketed faceplate and bonded Neo-Seal gasket; Adjustable polymer coupling with integral test cap; Approx. weight 64-67 lbs [29 kg]. material: Dura-Coated cast iron, corrosion resistant adjustable polymer coupling

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ1203-N.pdfData sheet

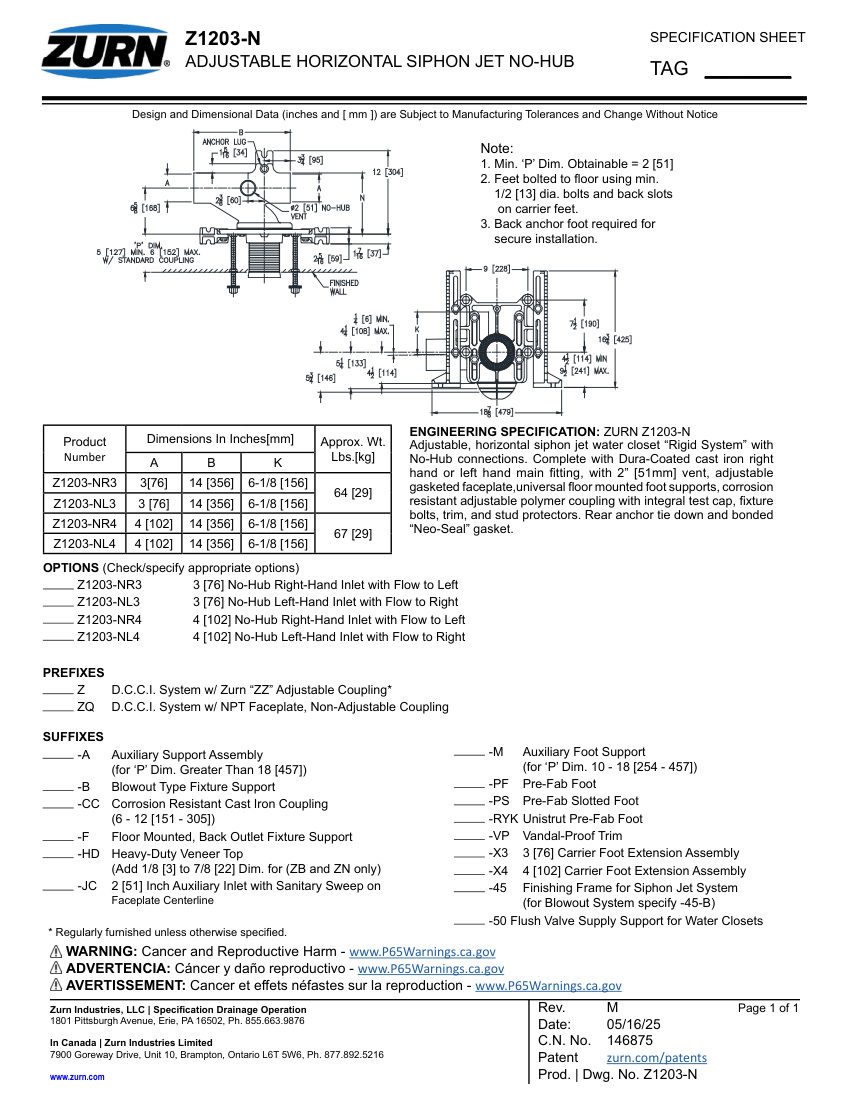

Zurn Z1203-N cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z1203-N
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ1203-N
DescriptionZurn Adjustable Horizontal Siphon Jet Water Closet (Water Closet). Model Z1203-N. Rigid System with No-Hub connections; Includes gasketed faceplate and bonded Neo-Seal gasket; Adjustable polymer coupling with integral test cap; Approx. weight 64-67 lbs [29 kg]. material: Dura-Coated cast iron, corrosion resistant adjustable polymer coupling
Connection size2 in [51 mm] vent
End connectionNo-Hub
FinishDura-Coated
MountingUniversal floor mounted foot supports, rear anchor tie down
DimensionsA: 3-4 in [76-102 mm], B: 14 in [356 mm], K: 6-1/8 in [156 mm].
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
