DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ1231-EZR — Z1231Z1231-EZR

Zurn Concealed Arm Carrier System (Wall Hung Lavatory Support System). Model Z1231-EZR. Approx. weight 45 lbs [20 kg]; Adjustable upright spacing from 15" to 22"; Total horizontal adjustment range of 11" to 26"; Includes leveling screws and soft-set elastomeric locking devices. material: Structural carbon-steel square tubing (ASTM A500 Grade C), Dura-Coated cast iron arms

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ1231-EZR.pdfData sheet

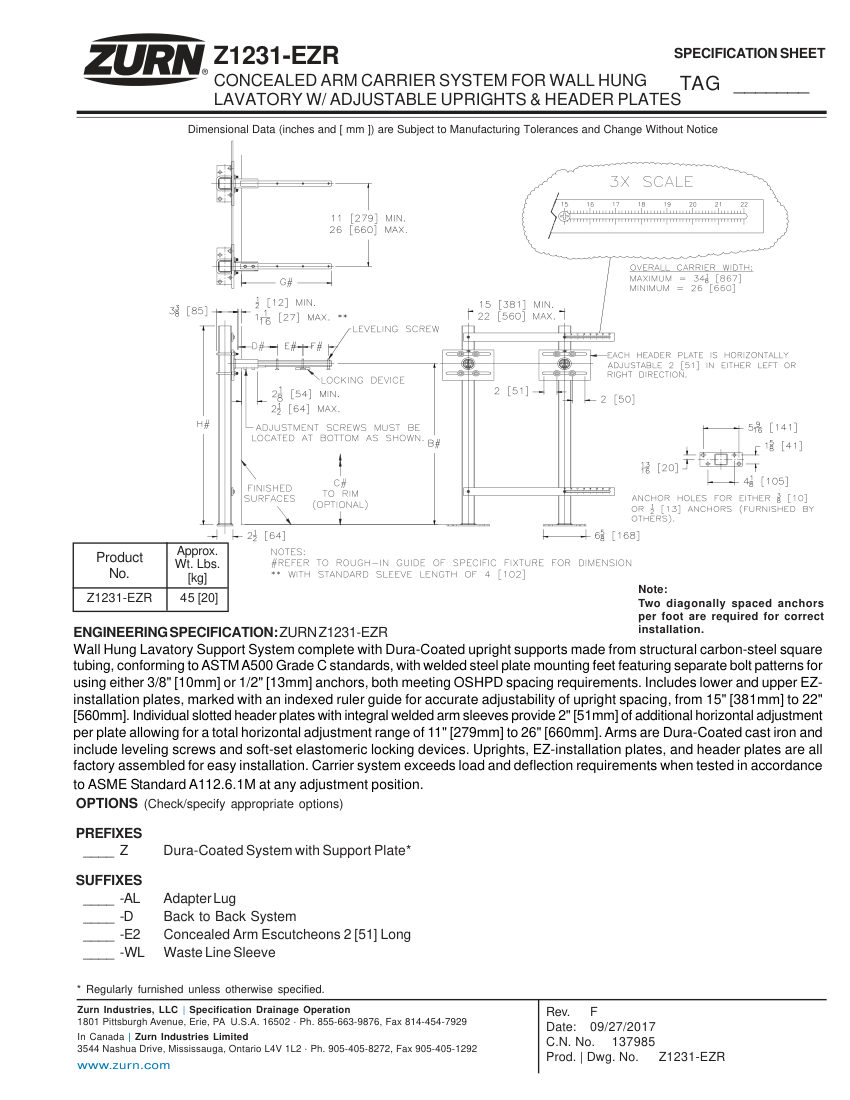

Zurn Z1231-EZR cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z1231-EZR
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ1231-EZR
DescriptionZurn Concealed Arm Carrier System (Wall Hung Lavatory Support System). Model Z1231-EZR. Approx. weight 45 lbs [20 kg]; Adjustable upright spacing from 15" to 22"; Total horizontal adjustment range of 11" to 26"; Includes leveling screws and soft-set elastomeric locking devices. material: Structural carbon-steel square tubing (ASTM A500 Grade C), Dura-Coated cast iron arms
Connection size3/8" [10mm] or 1/2" [13mm] anchors
End connectionWelded steel plate mounting feet
FinishDura-Coated
MountingWall hung, factory assembled
DimensionsUpright spacing 15" [381mm] to 22" [560mm]; Horizo
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
