DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ1231EZ

Zurn Wall Hung Lavatory Carrier System (Zurn Universal Concealed Arm Carrier System). Model Z1231EZ. Static load rating up to 250 lb [113 kg]; Horizontal post anchoring adjustment from 13" to 21" [330-533 mm]; Includes leveling screws and soft-set elastomeric locking devices; Uprights constructed of carbon-steel tubing meeting ASTM A500 Grade C. material: Dura-Coated ductile iron arms, carbon-steel tubing uprights (ASTM A500 Grade C)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ1231EZ.pdfData sheet

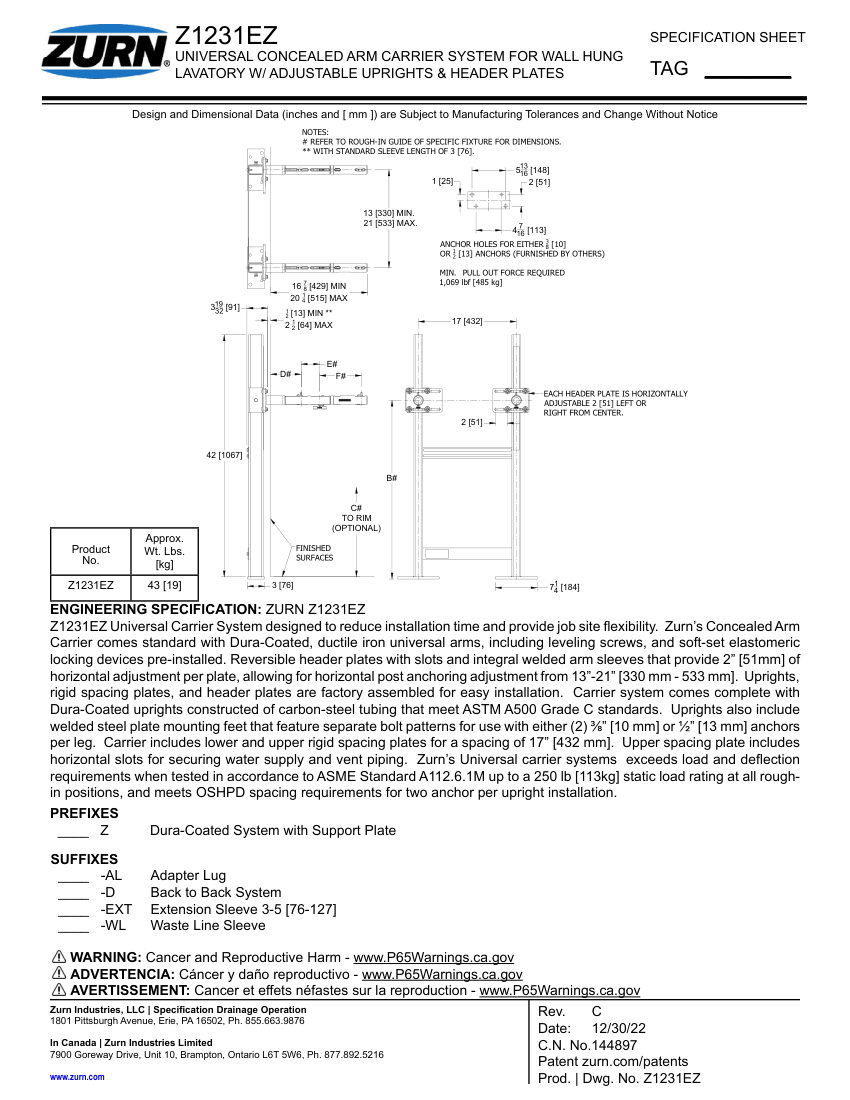

Zurn Z1231EZ cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z1231EZ
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ1231EZ
DescriptionZurn Wall Hung Lavatory Carrier System (Zurn Universal Concealed Arm Carrier System). Model Z1231EZ. Static load rating up to 250 lb [113 kg]; Horizontal post anchoring adjustment from 13" to 21" [330-533 mm]; Includes leveling screws and soft-set elastomeric locking devices; Uprights constructed of carbon-steel tubing meeting ASTM A500 Grade C. material: Dura-Coated ductile iron arms, carbon-steel tubing uprights (ASTM A500 Grade C)
FinishDura-Coated
MountingWall hung, 2 anchors per upright (3/8" or 1/2")
DimensionsHorizontal adjustment 13"-21" [330-533 mm], Spacing 17" [432 mm]; com
