DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ1240-EZR — Z1240Z1240-EZR

Zurn Exposed Arm Carrier System (Lavatory Support System). Model Z1240-EZR. 300 lbs [136 kg] load capacity; Adjustable uprights with indexed ruler guides; Slotted header plates provide 2" [51mm] additional horizontal adjustment per plate; Welded steel plate mounting feet with 3/8" [10mm] or 1/2" [13mm] anchor patterns. material: ASTM A500 Grade C Steel Uprights, ASTM A48 Class 25 Header, ASTM A36 Steel Plates

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ1240-EZR.pdfData sheet

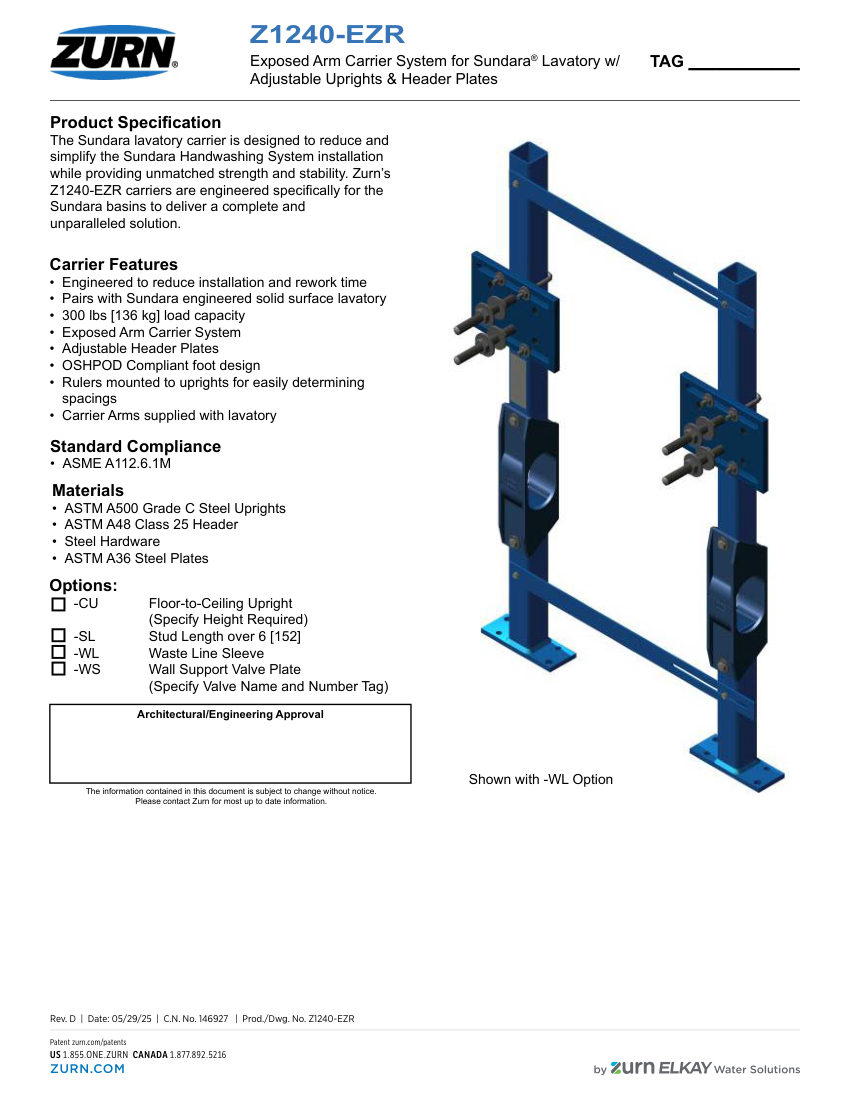

Zurn Z1240-EZR cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z1240-EZR
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ1240-EZR
DescriptionZurn Exposed Arm Carrier System (Lavatory Support System). Model Z1240-EZR. 300 lbs [136 kg] load capacity; Adjustable uprights with indexed ruler guides; Slotted header plates provide 2" [51mm] additional horizontal adjustment per plate; Welded steel plate mounting feet with 3/8" [10mm] or 1/2" [13mm] anchor patterns. material: ASTM A500 Grade C Steel Uprights, ASTM A48 Class 25 Header, ASTM A36 Steel Plates
FinishDura-Coated
MountingWall Hung
DimensionsUpright spacing 15" [381mm] to 22" [560mm]; Horizontal adjustment 11" [279mm] to 26" [660mm]
ComplianceASME A112.6.1M, OSHPD.
