DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ1310

Zurn Exposed, Non-Freeze, Anti-Siphon, Automatic Draining Wall Hydrant (Wall Hydrant). Model Z1310. Includes non-freeze integral backflow preventer; Features free-floating compression closure valve; Equipped with non-turning operating rod; Has replaceable bronze seat and seat washer. material: Bronze casing, all bronze interior parts, stainless steel face

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ1310.pdfData sheet

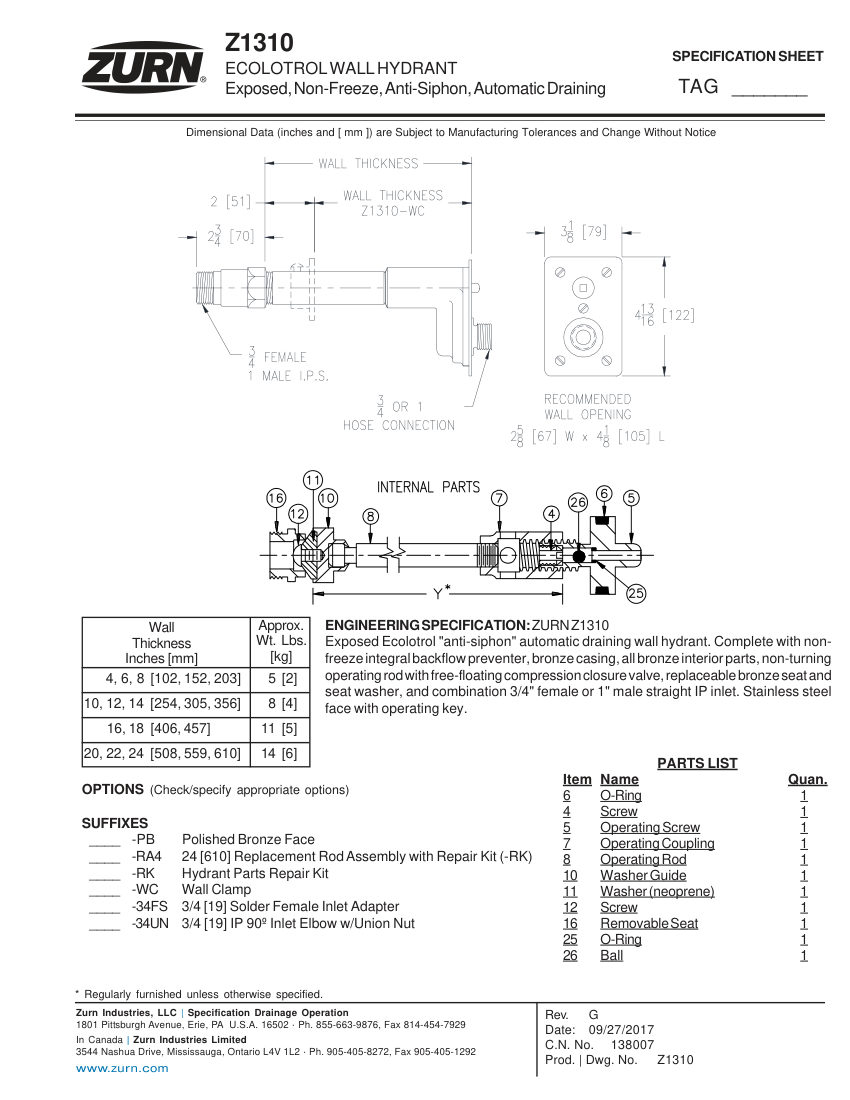

Zurn Z1310 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z1310
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ1310
DescriptionZurn Exposed, Non-Freeze, Anti-Siphon, Automatic Draining Wall Hydrant (Wall Hydrant). Model Z1310. Includes non-freeze integral backflow preventer; Features free-floating compression closure valve; Equipped with non-turning operating rod; Has replaceable bronze seat and seat washer. material: Bronze casing, all bronze interior parts, stainless steel face
Connection size3/4" female or 1" male straight IP inlet
End connectionIP inlet
FinishStainless steel face (Polished Bronze option available)
MountingWall mounted
DimensionsWall thickness 4-24 inches [102-610 mm].
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
