DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ1348-BFP — Z1348Z1348-BFP

Zurn Exposed non-freeze anti-siphon dual hot/cold wall faucet (Wall Faucet). Model Z1348-BFP. Includes automatic draining hose connection backflow preventer; Operating rod with spring-loaded compression closure valve; Replaceable seat washer; Weight ranges from 4 to 10 lbs [2-5 kg] depending on wall thickness. material: Brass casing, bronze interior parts

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ1348-BFP.pdfData sheet

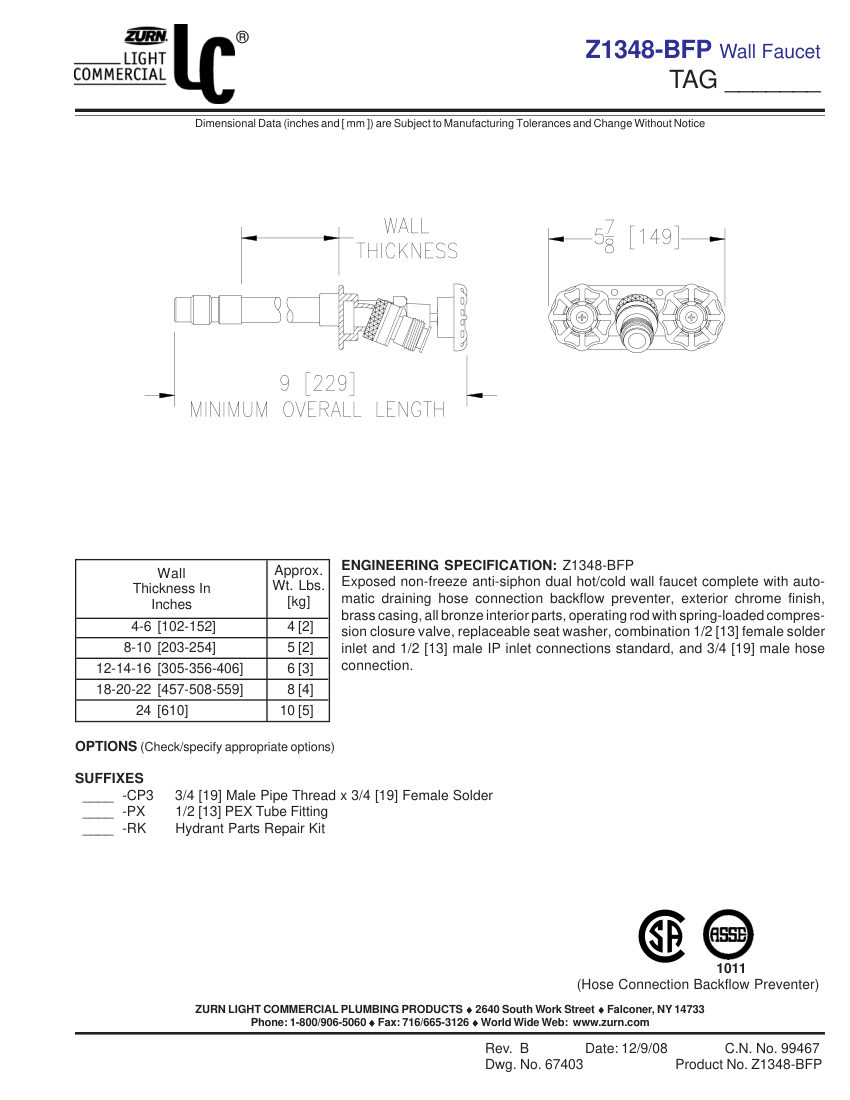

Zurn Z1348-BFP cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z1348-BFP
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ1348-BFP
DescriptionZurn Exposed non-freeze anti-siphon dual hot/cold wall faucet (Wall Faucet). Model Z1348-BFP. Includes automatic draining hose connection backflow preventer; Operating rod with spring-loaded compression closure valve; Replaceable seat washer; Weight ranges from 4 to 10 lbs [2-5 kg] depending on wall thickness. material: Brass casing, bronze interior parts
Connection size1/2 [13] female solder inlet, 1/2 [13] male IP inlet, 3/4 [19] male hose connection
End connectionCombination 1/2 [13] female solder inlet and 1/2 [13] male IP inlet
FinishExterior chrome
MountingWall
DimensionsWal
  • Official cut sheet, indexed
