DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ1397XL — Z1397XL HydrantZ1397XL

Zurn Exposed Head, Non-Freeze Yard Hydrant (Yard Hydrant). Model Z1397XL. Lead-free compliant per Federal SWDA section 1417; 3/4" [19] inlet connection with 1/8" [3] tapped drainage port; Features lift handle with lock option and slotted links for adjustable locking flow control; Available bury depths from 2 to 8 feet [610 to 2438 mm]. material: Dura-Coated cast iron head, galvanized steel casing, bronze and stainless steel interior components

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ1397XL.pdfData sheet

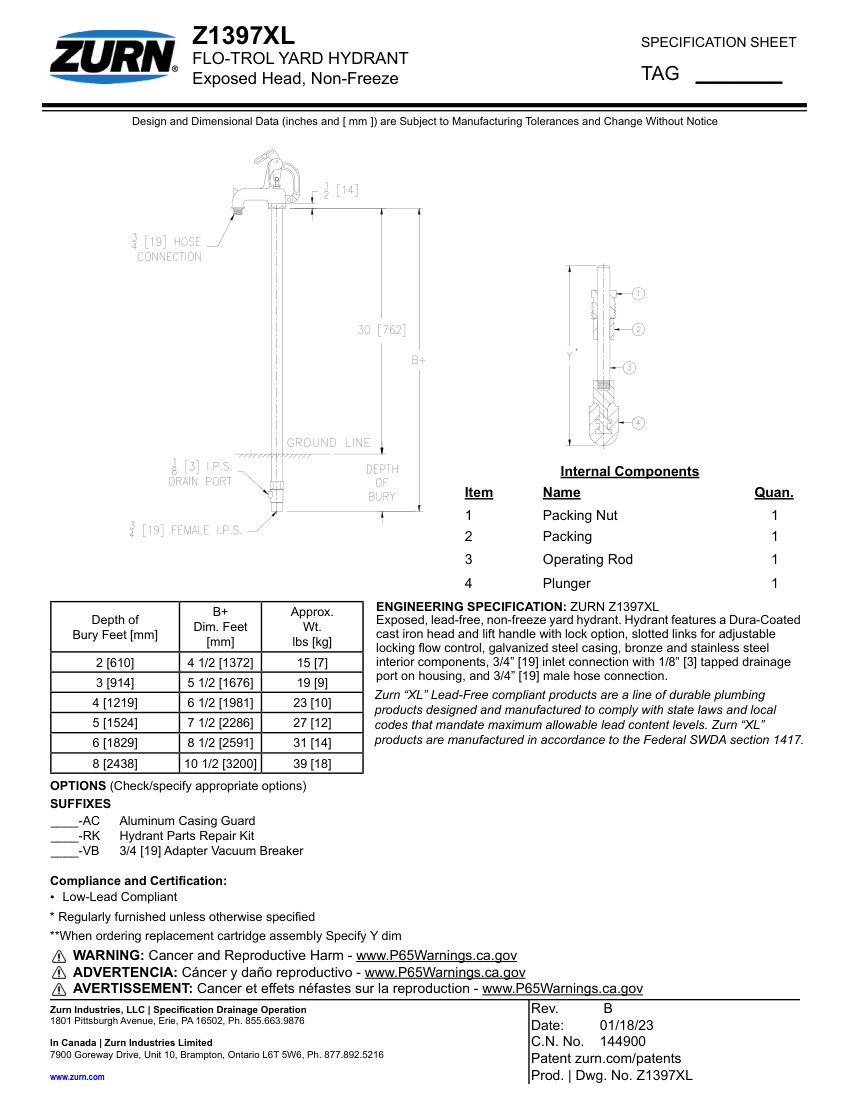

Zurn Z1397XL cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z1397XL
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ1397XL
DescriptionZurn Exposed Head, Non-Freeze Yard Hydrant (Yard Hydrant). Model Z1397XL. Lead-free compliant per Federal SWDA section 1417; 3/4" [19] inlet connection with 1/8" [3] tapped drainage port; Features lift handle with lock option and slotted links for adjustable locking flow control; Available bury depths from 2 to 8 feet [610 to 2438 mm]. material: Dura-Coated cast iron head, galvanized steel casing, bronze and stainless steel interior components
Connection size3/4" [19] inlet, 3/4" [19] male hose connection
End connectionMale hose connection
FinishDura-Coated
MountingBury depth 2 to 8
