ZurnZ1400-SZ

Zurn Adjustable Leveling Floor Cleanout (Drainage). Model Z1400-SZ. Square adjustable leveling floor cleanout; Gas and watertight ABS tapered thread plug; Round scoriated secured light-duty top; Weight approx. 10.5 to 12.1 lbs [4.8-5.5 kg]. material: Dura-Coated cast iron body, ABS tapered thread plug

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ1400-SZ.pdfData sheet

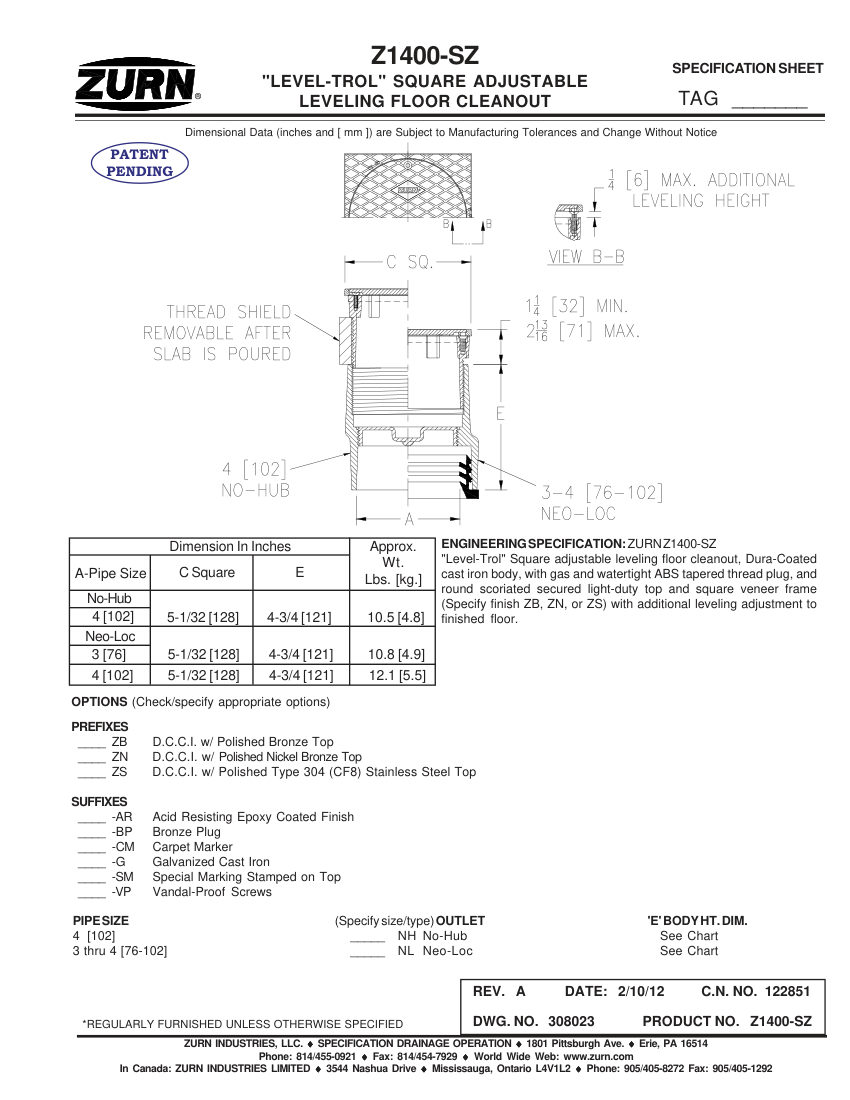

Zurn Z1400-SZ cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z1400-SZ
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ1400-SZ
DescriptionZurn Adjustable Leveling Floor Cleanout (Drainage). Model Z1400-SZ. Square adjustable leveling floor cleanout; Gas and watertight ABS tapered thread plug; Round scoriated secured light-duty top; Weight approx. 10.5 to 12.1 lbs [4.8-5.5 kg]. material: Dura-Coated cast iron body, ABS tapered thread plug
Connection size3 [76] to 4 [102] inches
End connectionNo-Hub or Neo-Loc
FinishDura-Coated (Options: Polished Bronze, Polished Nickel Bronze, Polished Type 304 Stainless Steel)
MountingSquare veneer frame with additional leveling adjustment
DimensionsSquare: 5-1/32 [128] in; Body Heig
