ZurnZ150F — Z150F FLOFORCE® Deck DrainZ150F

Zurn Deck Drain (Drainage). Model Z150F. High performance promenade deck drain with rotatable frame; Heel-proof ductile iron grate; Smooth funnel-shaped interior surface for efficient flow; Includes membrane flashing clamp and seepage openings. material: Dura-Coated cast iron body, ductile iron grate

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ150F.pdfData sheet

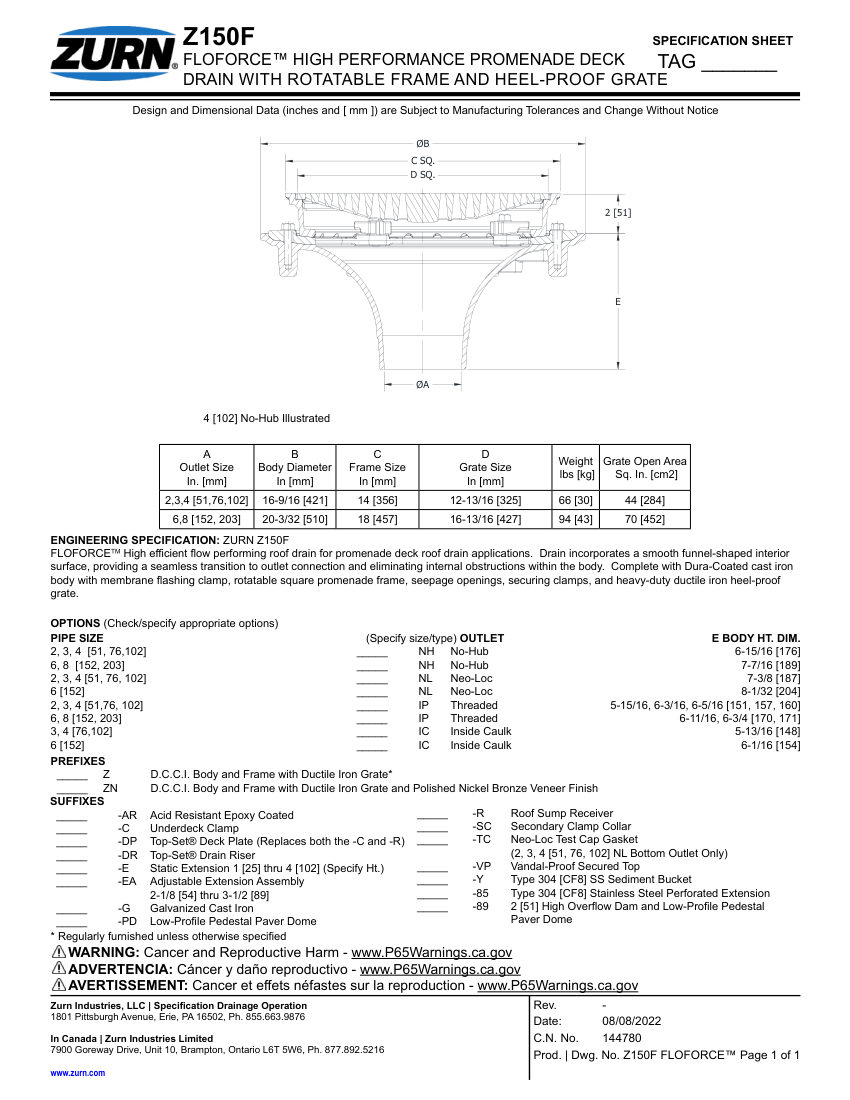

Zurn Z150F cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z150F
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ150F
DescriptionZurn Deck Drain (Drainage). Model Z150F. High performance promenade deck drain with rotatable frame; Heel-proof ductile iron grate; Smooth funnel-shaped interior surface for efficient flow; Includes membrane flashing clamp and seepage openings. material: Dura-Coated cast iron body, ductile iron grate
Connection size2, 3, 4, 6, 8 in [51, 76, 102, 152, 203 mm]
End connectionNo-Hub, Neo-Loc, Threaded, Inside Caulk
FinishDura-Coated, Polished Nickel Bronze Veneer (Option)
MountingPromenade deck, rotatable square frame
DimensionsBody Diameter: 16-9/16 to 20-3/32 in [421-510 mm]; Frame
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
