DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ1700

Zurn Water Hammer Arrestor (Water Hammer Arrestors). Model Z1700. All stainless steel construction with nesting type bellows; Operating temperature range 33°F to 300°F [1°C to 149°C]; Standard 3/4" male I.P.S. inlet for size 100; Standard 1" male I.P.S. inlet for sizes 200 through 600. material: Type 304 stainless steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ1700.pdfData sheet

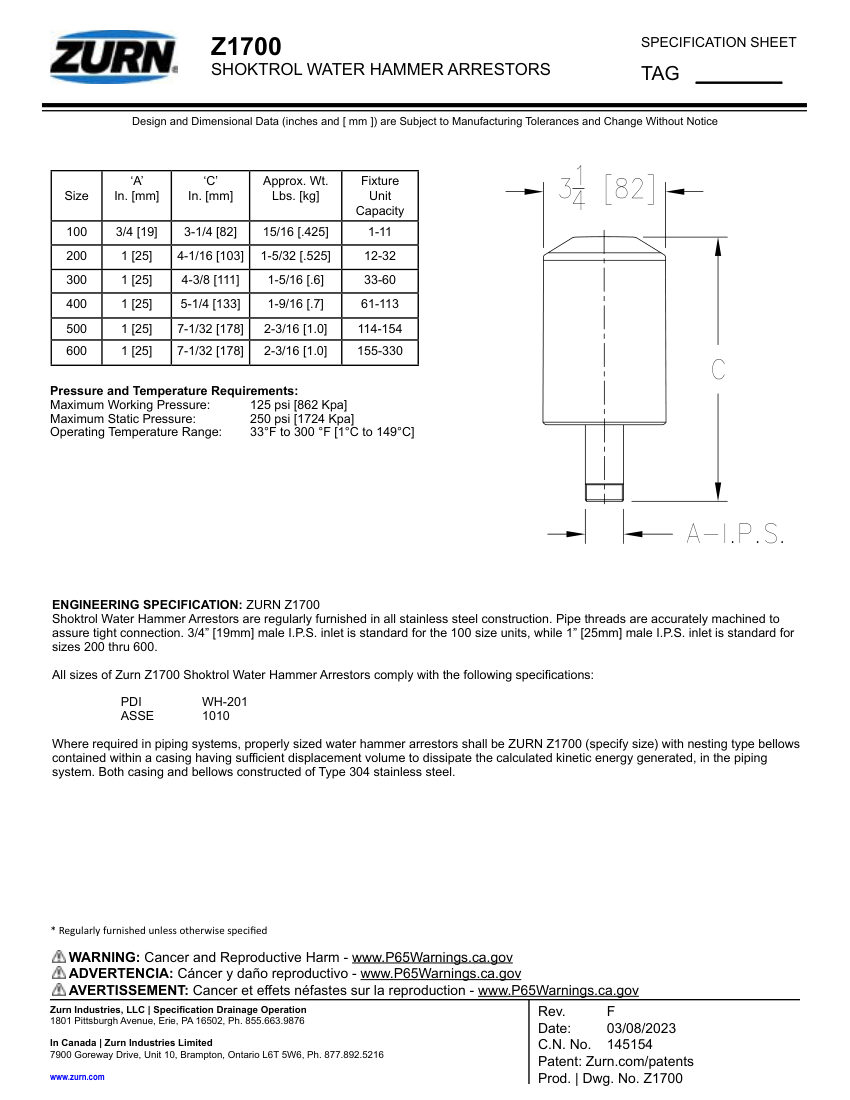

Zurn Z1700 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z1700
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ1700
DescriptionZurn Water Hammer Arrestor (Water Hammer Arrestors). Model Z1700. All stainless steel construction with nesting type bellows; Operating temperature range 33°F to 300°F [1°C to 149°C]; Standard 3/4" male I.P.S. inlet for size 100; Standard 1" male I.P.S. inlet for sizes 200 through 600. material: Type 304 stainless steel
Connection size3/4" [19mm] or 1" [25mm] male I.P.S.
End connectionMale I.P.S.
Pressure RatingMax Working 125 psi [862 Kpa]; Max Static 250 psi [1724 Kpa]
DimensionsVaries by size (e.g., Size 100: 3-1/4" [82mm] length)
CompliancePDI WH-201, ASSE 1010.
