DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ1726

Zurn Adjustable Floor Drain (Drainage). Model Z1726. Medium duty round top design; Strainer open area ranges from 7 to 27 sq in [45 to 174 cm2]; Approximate weight ranges from 13 to 19 lbs [6 to 9 kg]; Optional anchor flange with seepage holes and clamp collar. material: Type 304 (CF8) Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ1726.pdfData sheet

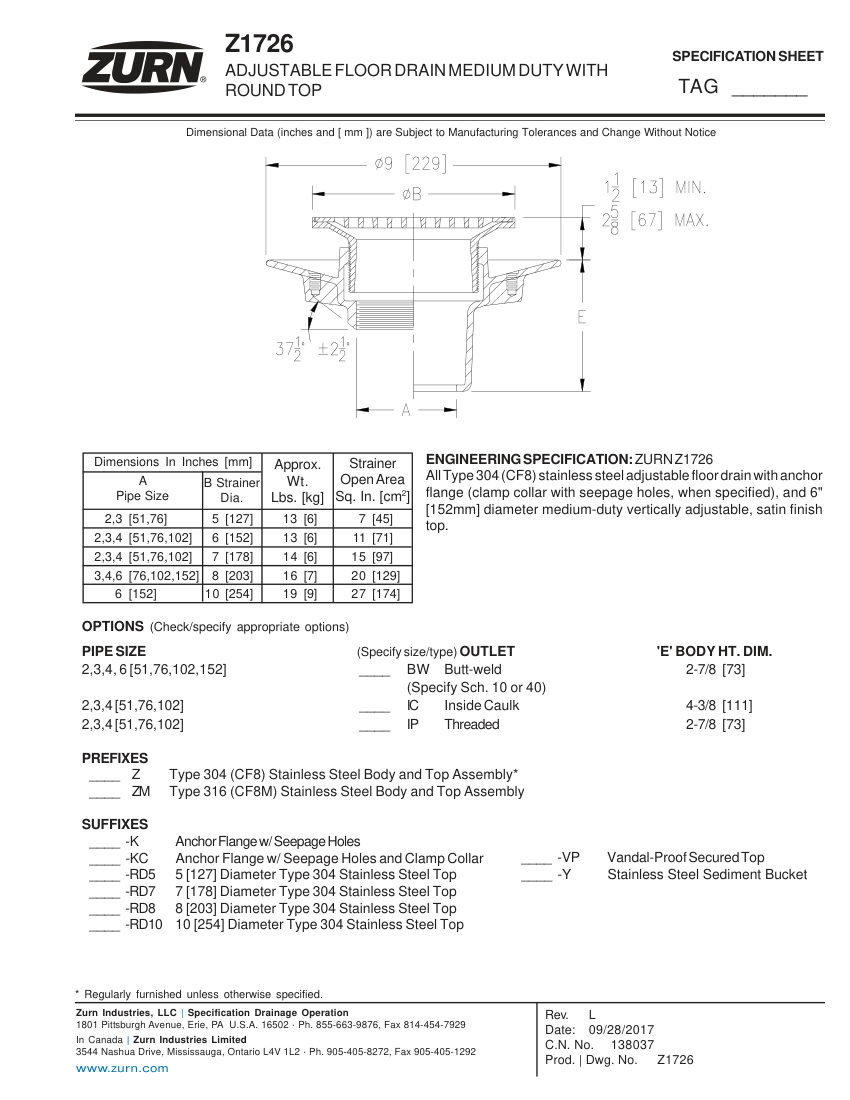

Zurn Z1726 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z1726
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ1726
DescriptionZurn Adjustable Floor Drain (Drainage). Model Z1726. Medium duty round top design; Strainer open area ranges from 7 to 27 sq in [45 to 174 cm2]; Approximate weight ranges from 13 to 19 lbs [6 to 9 kg]; Optional anchor flange with seepage holes and clamp collar. material: Type 304 (CF8) Stainless Steel
Connection size2, 3, 4, 6 in [51, 76, 102, 152 mm]
End connectionBW Butt-weld, IC Inside Caulk, IP Threaded
FinishSatin
MountingVertically Adjustable
DimensionsTop Dia: 5, 6, 7, 8, 10 in [127, 152, 178, 203, 254 mm]
Body Ht2-7/8 or 4-3/8 in [73 or 111 mm].
