DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ1727

Zurn Adjustable Floor Drain (Floor Drain). Model Z1727. Medium-duty vertically adjustable design; Square top with open areas ranging from 9 to 25 sq in [58 to 161 cm2]; Available in Type 304 or Type 316 stainless steel; Options include seepage holes, clamp collar, and vandal-proof secured top. material: Type 304 (CF8) Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ1727.pdfData sheet

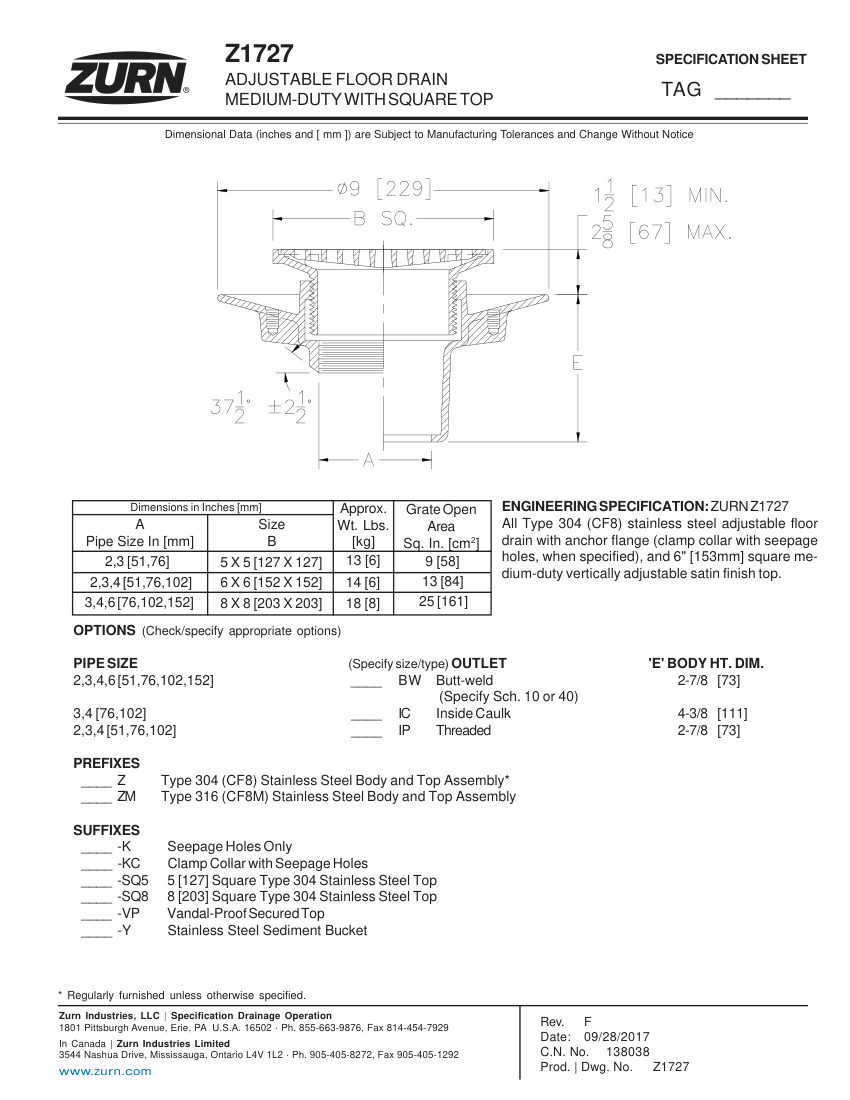

Zurn Z1727 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z1727
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ1727
DescriptionZurn Adjustable Floor Drain (Floor Drain). Model Z1727. Medium-duty vertically adjustable design; Square top with open areas ranging from 9 to 25 sq in [58 to 161 cm2]; Available in Type 304 or Type 316 stainless steel; Options include seepage holes, clamp collar, and vandal-proof secured top. material: Type 304 (CF8) Stainless Steel
Connection size2, 3, 4, 6 in [51, 76, 102, 152 mm]
End connectionButt-weld, Inside Caulk, Threaded
FinishSatin
MountingAnchor flange, Clamp collar
Dimensions5x5, 6x6, 8x8 in [127x127, 152x152, 203x203 mm] top; 2-7/8 to 4-3/8 in [73 to 111 mm] body hei
