DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ1910

Zurn Sani-Flor Receptor (Floor Drain). Model Z1910. 8" x 8" x 6" [203mm x 203mm x 152mm] deep cast iron body; Square, medium-duty grate with 7/16" [11mm] slotted openings; White acid resisting porcelain enamel interior and top; Complete with white ABS anti-splash interior bottom dome strainer. material: Cast iron body, white acid resisting porcelain enamel interior, white ABS anti-splash interior bottom dome strainer

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ1910.pdfData sheet

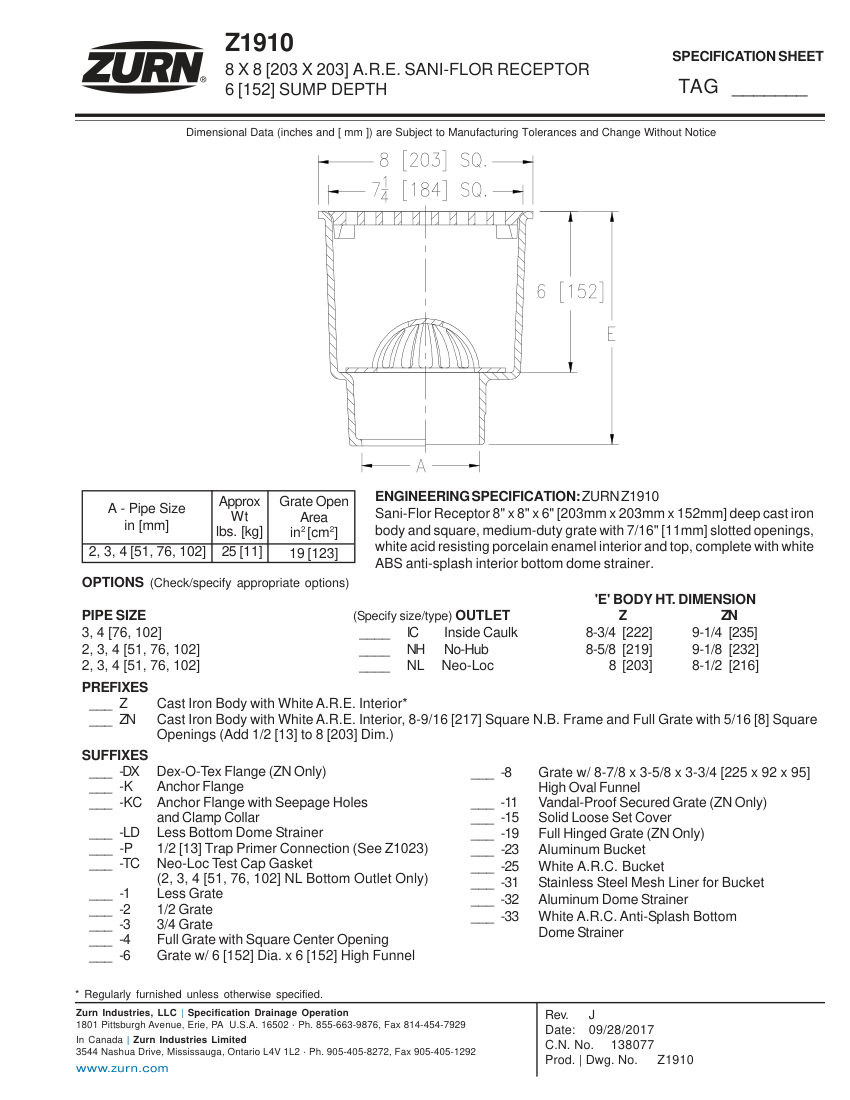

Zurn Z1910 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z1910
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ1910
DescriptionZurn Sani-Flor Receptor (Floor Drain). Model Z1910. 8" x 8" x 6" [203mm x 203mm x 152mm] deep cast iron body; Square, medium-duty grate with 7/16" [11mm] slotted openings; White acid resisting porcelain enamel interior and top; Complete with white ABS anti-splash interior bottom dome strainer. material: Cast iron body, white acid resisting porcelain enamel interior, white ABS anti-splash interior bottom dome strainer
Connection size2, 3, 4 [51, 76, 102] in [mm]
End connectionInside Caulk, No-Hub, Neo-Loc
FinishWhite acid resisting porcelain enamel
MountingFloor
Dimensions8 x 8 x 6
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
