DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ2105

Zurn Pressure Reducing Valve (Pressure-Tru Fire Hose Valve). Model Z2105. Listed as a standpipe valve for individual hose stations in CLASS II systems; Regulates pressure under both FLOW and NO-FLOW conditions; Can be adjusted and set at the factory or in the field without draining the standpipe riser; Main valve body is Cast bronze ASTM B 584. material: Cast bronze ASTM B 584

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ2105.pdfData sheet

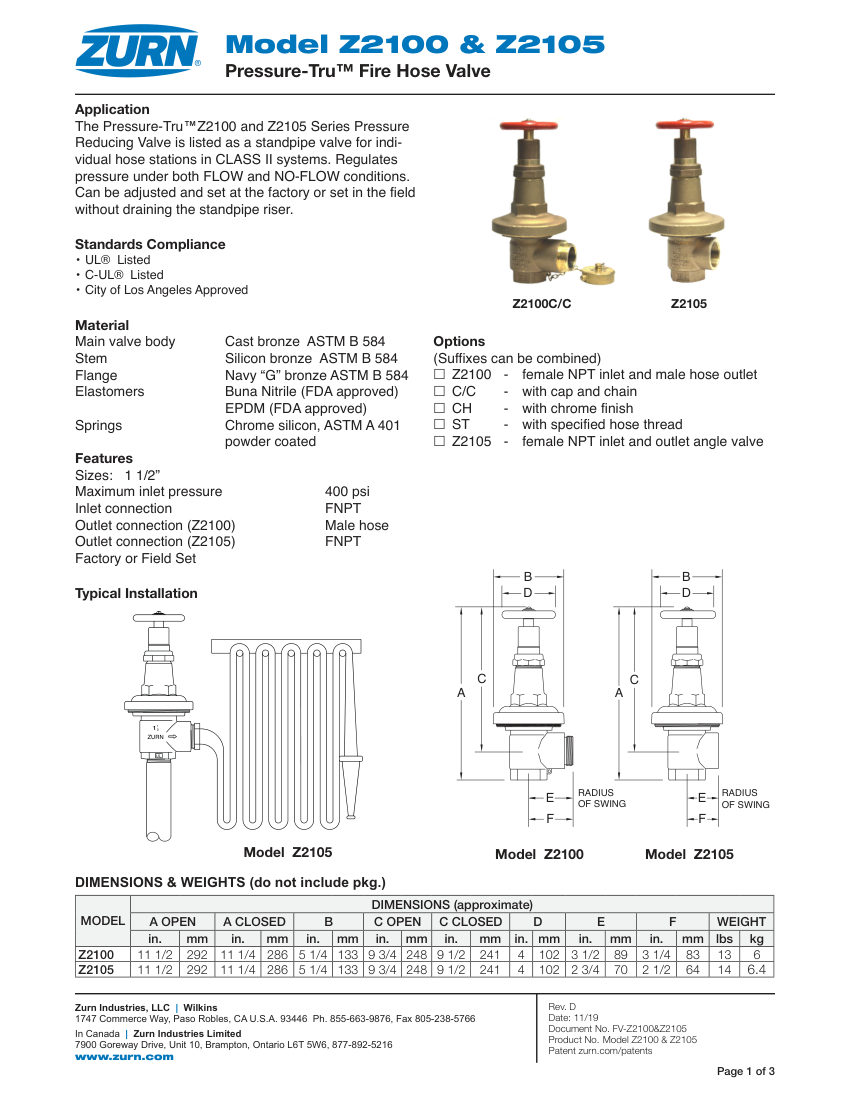

Zurn Z2105 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z2105
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ2105
DescriptionZurn Pressure Reducing Valve (Pressure-Tru Fire Hose Valve). Model Z2105. Listed as a standpipe valve for individual hose stations in CLASS II systems; Regulates pressure under both FLOW and NO-FLOW conditions; Can be adjusted and set at the factory or in the field without draining the standpipe riser; Main valve body is Cast bronze ASTM B 584. material: Cast bronze ASTM B 584
Connection size1 1/2"
End connectionFNPT inlet and outlet
Pressure Rating400 psi
DimensionsA: 11 1/2 in (Open), B: 5 1/4 in, C: 9 3/4 in (Open), D: 4 in, E: 2 3/4 in, F: 2 1/2 in
ComplianceUL Listed, C-UL Lis
