DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ3000

Zurn Pressure Reducing Valve (Pressure-Tru Fire Hose Valve). Model Z3000. Listed as a standpipe valve for individual hose stations in CLASS I and CLASS III systems; Regulates pressure under both FLOW and NO-FLOW conditions; Can be adjusted and set at the factory or in the field without draining the standpipe riser; Stem made of Silicon bronze ASTM B 584. material: Cast bronze ASTM B 584

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ3000.pdfData sheet

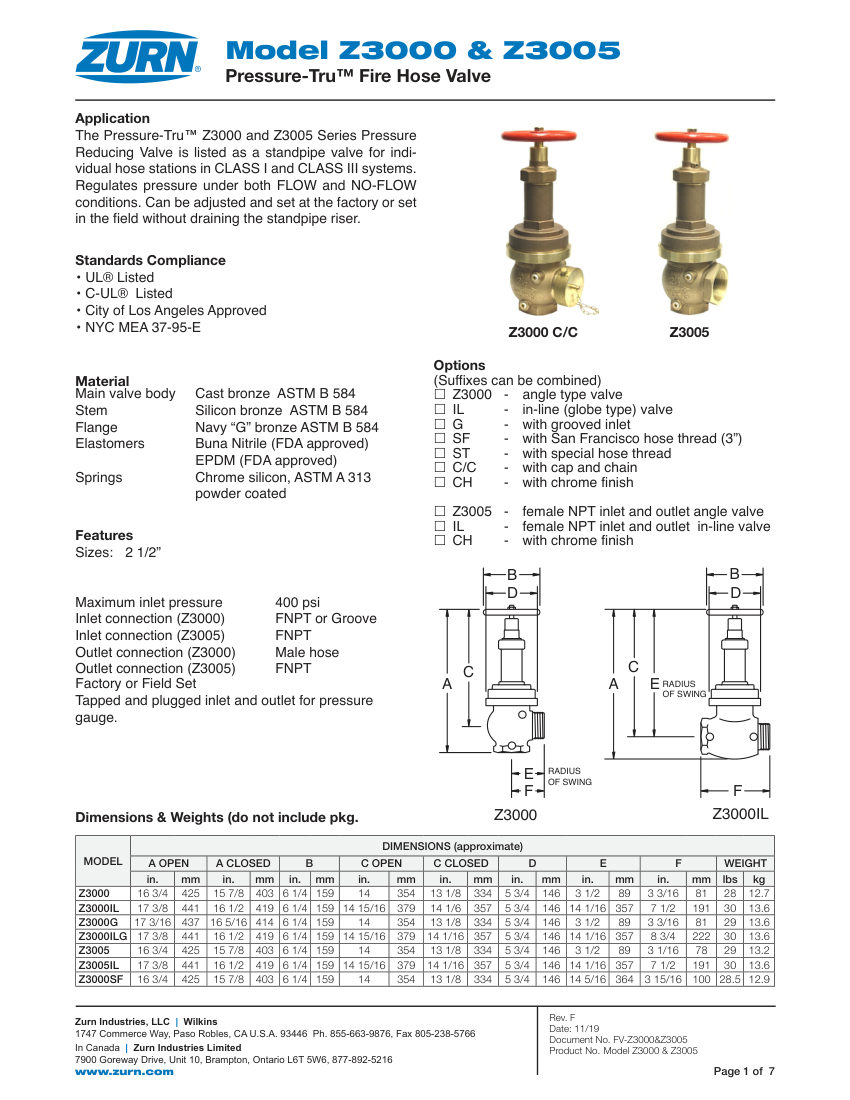

Zurn Z3000 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z3000
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ3000
DescriptionZurn Pressure Reducing Valve (Pressure-Tru Fire Hose Valve). Model Z3000. Listed as a standpipe valve for individual hose stations in CLASS I and CLASS III systems; Regulates pressure under both FLOW and NO-FLOW conditions; Can be adjusted and set at the factory or in the field without draining the standpipe riser; Stem made of Silicon bronze ASTM B 584. material: Cast bronze ASTM B 584
Connection size2 1/2"
End connectionFNPT or Groove inlet, Male hose outlet
Pressure Rating400 psi
ComplianceUL Listed, C-UL Listed, City of Los Angeles Approved, NYC MEA 37-95-E.

Also cataloged as: Z3005
