DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ310

Zurn Thoroflush Drain (Drainage). Model Z310. 11" [279mm] top Thoroflush drain; Cast iron body with white acid resistant epoxy coating; Nickel bronze flushing rim with slotted hinged grate; Approx. grate open area: 18 sq. in. [116 cm2]. material: Cast iron body, nickel bronze flushing rim

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ310.pdfData sheet

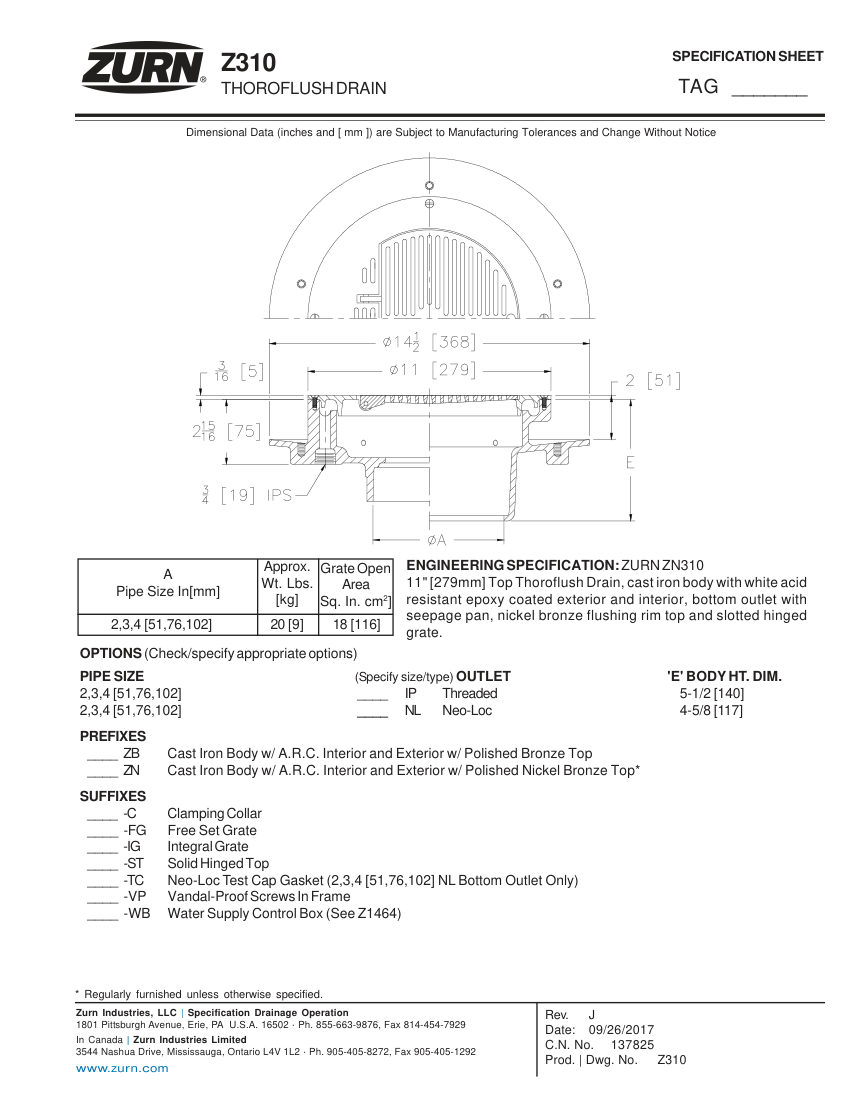

Zurn Z310 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z310
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ310
DescriptionZurn Thoroflush Drain (Drainage). Model Z310. 11" [279mm] top Thoroflush drain; Cast iron body with white acid resistant epoxy coating; Nickel bronze flushing rim with slotted hinged grate; Approx. grate open area: 18 sq. in. [116 cm2]. material: Cast iron body, nickel bronze flushing rim
Connection size2, 3, 4 [51, 76, 102] in [mm]
End connectionBottom outlet (Threaded or Neo-Loc)
FinishWhite acid resistant epoxy coated exterior and interior, polished nickel bronze top
MountingTop mount
Dimensions11" [279mm] top, 5-1/2" [140mm] or 4-5/8" [117mm] body height.
